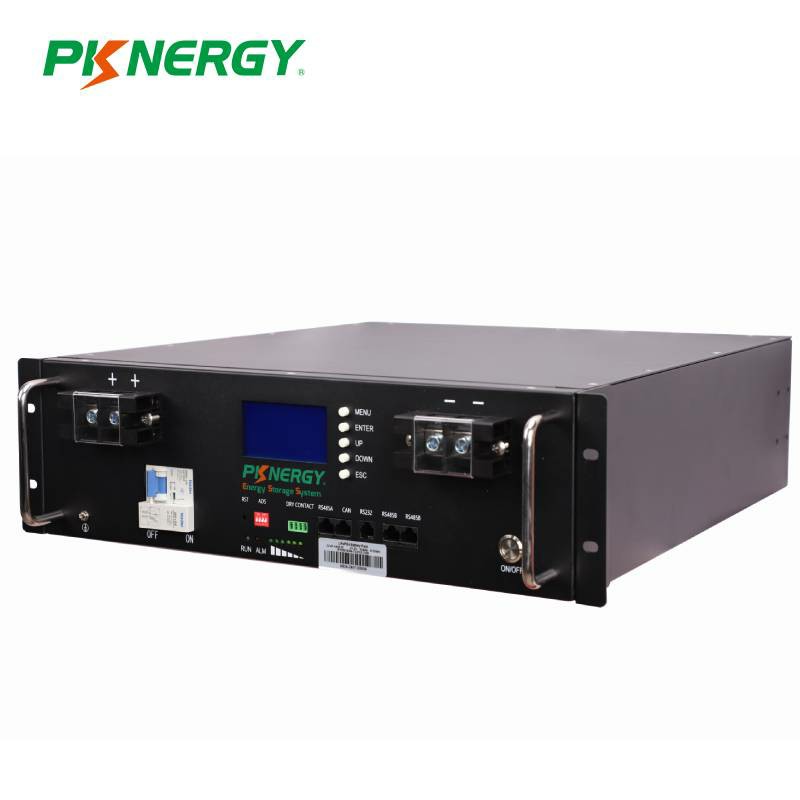

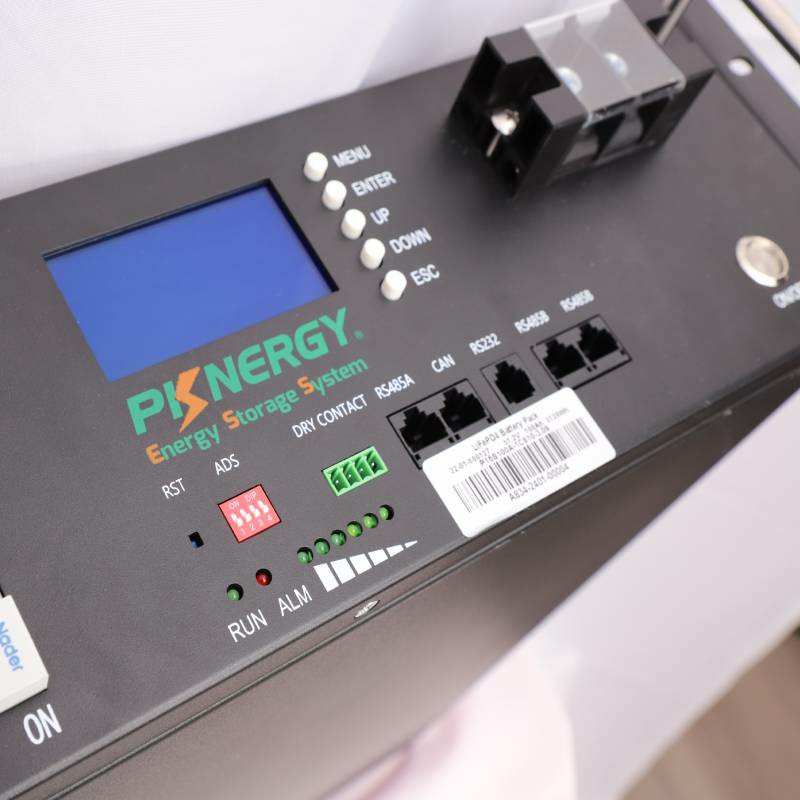

PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery with LCD Screen

Short Description:

PKNERGY Best Batteries For Solar Off Grid – Rack Mounted Battery
Battery Type: Lithium ion phosphate Battery
Brand: PKNERGY
Rated voltage: 51.2V
Capacity :100Ah
Size ( mm) :440*450*155
Weight :44kgs/105.82 lbs
Application :Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package :Polywood box


Product Detail

Product Tags

PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery  (1)

Introduction of the Batteries For Solar Off Grid

When it comes to solar off-grid systems, choosing the right battery can make all the difference. The PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery is one of the best batteries for solar off-grid systems on the market. It adopts highly reliable Lithium battery cells, offering a long cycle life and consistent performances.

Features of the PKNERGY Rack Mounted Lifepo4 Battery

The PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery packs use advanced Battery Management System (BMS) technology to enhance system performance, prolong battery life, and warrant safety. They come in various sizes and are easy to install with customization services available for panel options and support for parallel expansion. The Rack-Mounted Batteries (Server Rack Battery) are a great way to store energy and maintain electricity in the building.

Parameter of the PKNERGY Rack Mounted Lifepo4 Battery

Package

No.

Item

General Parameter

Remark



1

Combination method



16S1P



51.2V 100Ah





2



Rated Capacity

Typical

100Ah

Standard discharge after Standard charge (package)

Minimum

98Ah



3

Factory Voltage



51V-54V

Mean Operation Voltage







4

Voltage at end of Discharge



40V

Discharge Cut- off Voltage

5

Charging Voltage

57.6V





6

Internal Impedance



≤120m Ω

Internal resistance measured at AC 1 KHZ after 50% charge,The measure must uses the new

batteries that within one week after shipment and cycles less than 5 times

7

Standard charge

Constant Current 0.2C Constant Voltage 57.6V

0.02CA cut-off



Charge time : Approx 6 h



8

Standard discharge



Constant current:0.2C end voltage 51-54V





9

Maximum Continuous

Charge Current

100A

T≥ 10ºC





10

Maximum Continuous

Discharge Current





100A



T≥ 10ºC



11

Operation Temperature

Range



Charge : 0~45℃

60± 25%R .H.

Bare Cell

Discharge : -20~60℃

12

Storage Temperature Range

Less than 12 months :

-10~35℃



60± 25%R .H.

at the shipment state



less than 3 months: -10~45℃

Less than 7 day : -20~65℃





13

Dimensions

440*450*155mm

Include Bracket



14

Weight

Approx: 44kg



Applications of the PKNERGY Rack Mounted Lifepo4 Battery

The PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery is an excellent energy storage solution for solar-wind power systems, city grids (on/off), community and family back-up systems, and UPS. Additionally, the battery is suitable for telecom bases, CATV systems, computer server centers, medical instruments, and military equipment.

Other Applications of the Rack Mounted Battery

The PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery can also be used in other applications such as security and electronics, mobile POS, mining light, torch, LED light, emergency light, RV motorhomes, golf carts battery, boats marine yachts, electric skateboards, and engine starting battery.

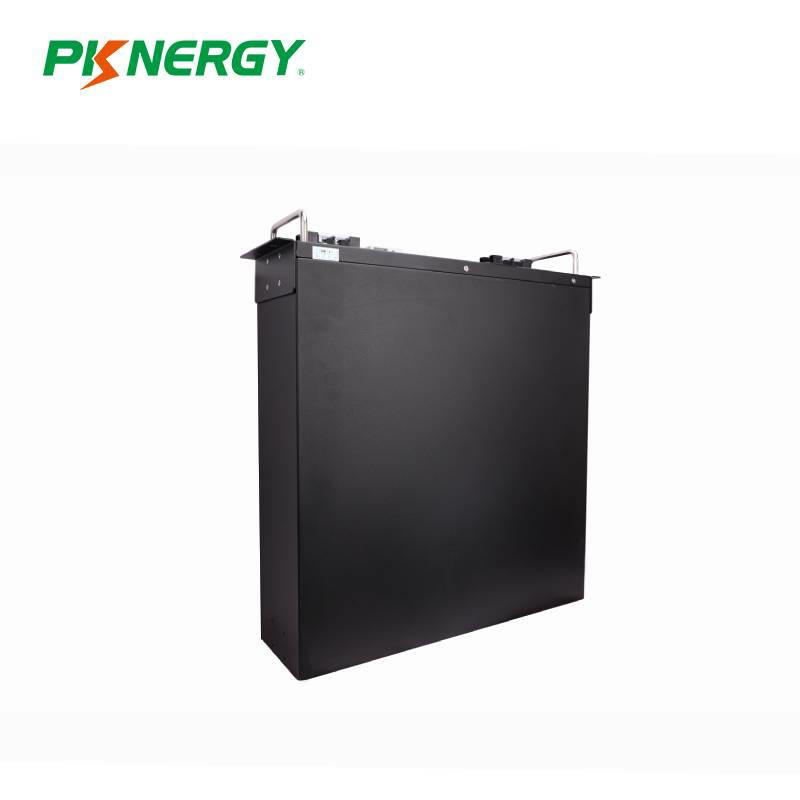

Rack mounted battery(2)

Lifespan and Design of the Rack Mounted Battery

The PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery offers a lifespan of 6000 cycles and a 20-year design life. The Lifepo4 battery life is ten times longer than ordinary batteries, making it a truly maintenance-free solution.

Customized solutions for off-grid solar Batteries

Investing in the PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery is an excellent decision for businesses looking for reliability, durability, and energy cost savings. The battery's long lifespan and advanced Battery Management System (BMS) technology make it an ideal solution for any solar off-grid system application.Custom solutions are available for the PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery, tailor-made to meet individual needs. Please contact the manufacturer for more information.

PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery with LCD Screen PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery with LCD Screen
