PKNERGY 15Kwh 48V 300Ah Solar Lithium Battery For Home

Short Description:

  1. Product name: 15Kwh 48V 300Ah Solar Lithium Battery
  2. Application: Home, resdential
  3. Battery Type: LiFePO4
  4. Voltage:48V
  5. Capacity:300Ah
  6. Controller Type: MPPT
  7. Work Time (h): 24 hours
  8. Certificate: CE, UN38.3, MSDS,IEC/ISO9001/ISO1400
  9. Dimension: 1165*458*355mm
  10. Cycle life: Over 7000 times
  11. Cell type: 3.2v 100ah Lifepo4 Prismastic battery Cell
  12. Minimum Order Quantity: 5 units (Pakistan, Lebanon: 1 unit)


Product Detail

Product Tags

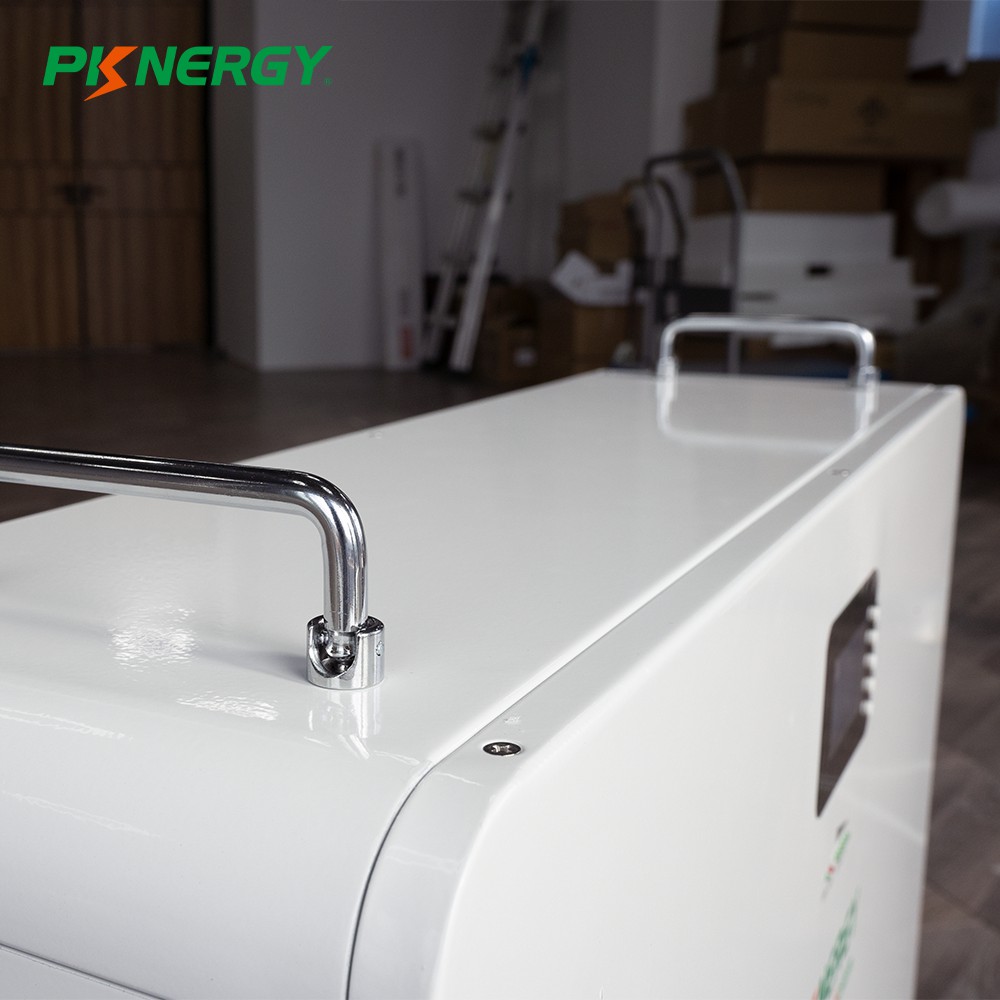

PKNERGY 15Kwh 48V 300Ah Solar Lithium Battery For Home (7)

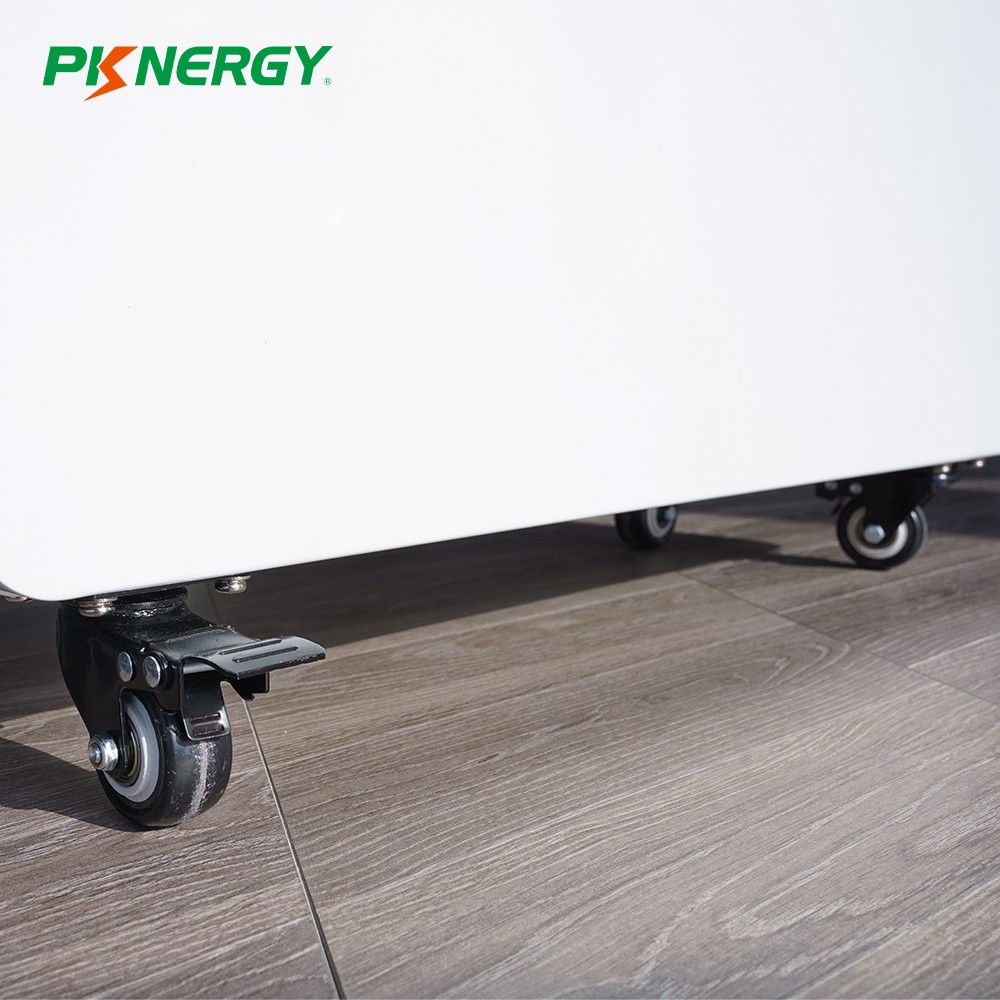

48v 300Ah 15Kwh Wall-Mount LiFePO4 Battery with Roller is pack designed as an Energy storage system ess battery module. It can be used in series or in parallel. It is compatible with all industry-leading standard solar charge controllers, inverters. Our lifepo4 battery solar with longer cycle life compared to other lithium-ion chemistries. Which means they can withstand a higher number of charge and discharge cycles before their capacity significantly degrades. So that thelifepo4 battery solar lead to a longer lifespan for the Powerwall and potentially lower maintenance costs over time.
Superior chemical and thermal stability, Lithium Iron Phosphate battery pack is the safest in the lithium-ion family. It includes Canbus, RS485 communication, Modules can be connected in parallel, and paralleled modules that communicate through RS485. Battery modules communicate with the inverter via the CAN interface. Compatible with CANBUS protocol, compatible with Growatt, Goodwe, Deye inverter.Supports parallel, Best for energy storage, and more extended cycle life Module Applications. This 5kwh energy storage system battery is easy to install and keep in parallel households, small industrial businesses, tiny houses, and homes.

Features

- 48v LFP-based ESS, long life expectancy of 15+ years.

- Battery bank Expandable in parallel as power needs to increase.

- Operates at 98% efficiency for more than 7000 times cycles.

- Offer up to 100% depth of discharge.

- integrated battery management system ( BMS ).

- Flexible control that covers all commercial fields.

- Quick and Easy Installation, Maintenance-free.

Battery Pack specifications

Model PKG-PW512280
Cell model/Configuration 3.2V 280Ah/16S1P
Voltage 51.2V
Capacity 280Ah
Rated Energy 14.336KWh
Max.Charge/Discharge Current 200A(Optional)
Voltage Range 43.2~58.4V
Max.Scalability Pack*6
Communieation Inverter:RS485/CAN(According to the brand)Upper computer:RS232
Cycle Life 000 cycles@25℃,90%DOD,60%EOL
Design Life 15 years(25℃)
MECHANICAL SPECIFICATIONS
Weight(Approx) 115Kg
Dimension L240*W780*H500mm
Installation Mode Install the wall/Place corners
IP Grade IP21
SECURITY
Protection 1(BMS) Over voltage、Under voltage、Over current、Short circuit 、Temperature、Reverse connection
Protection 2 Breaker
Cooling Smart cooling
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Charge:0℃~50℃,Discharge:-20℃-55℃
Humidity ≤95%(Non-condensing)
Alfitude ≤2000M

Applications

PKNERGY 15Kwh 48V 300Ah Solar Lithium Battery For Home (1)
Inverter Compatible
PKNERGY 15Kwh 48V 300Ah Solar Lithium Battery For Home (2)
