PKNERGY 10Kwh 51.2V 200Ah Wall-Mount LiFePO4 Battery

Short Description:

Product name: 51.2V 200Ah 10kwh Powerwall Battery
Application: Home
Battery Type: LiFePO4
Voltage：51.2V
Capacity：200Ah
Controller Type: MPPT
Work Time (h): 24 hours

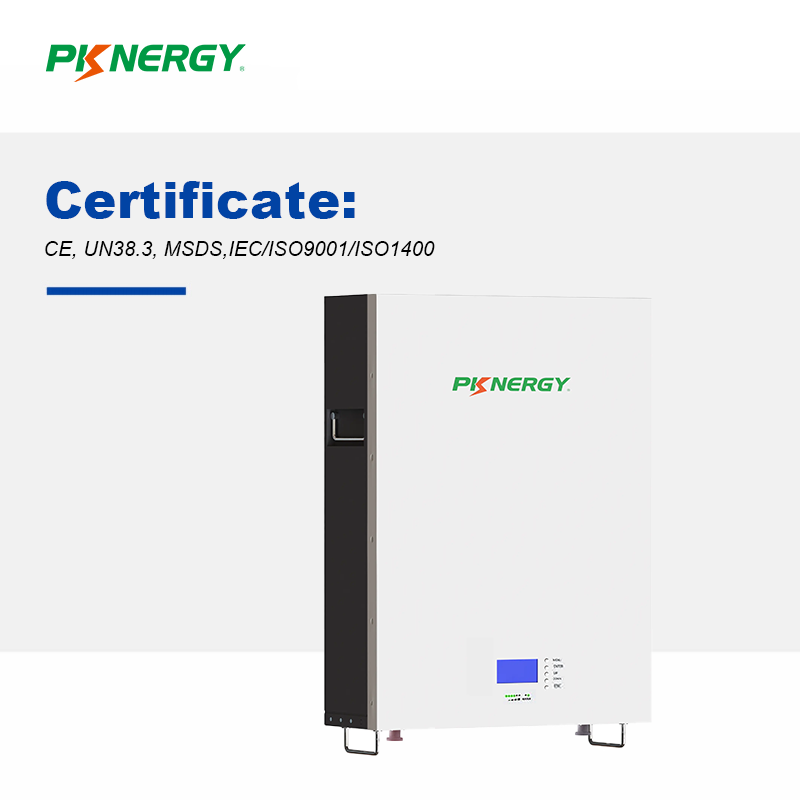

Certificate: CE, UN38.3, MSDS,IEC/ISO9001/ISO1400
Dimension: 680*480*180mm
Cycle life: Over 6000 times
Cell type: 3.2v 100ah Lifepo4 Prismastic battery Cell

SEND EMAIL TO US Download as PDF

Product Detail

Product Tags

Description

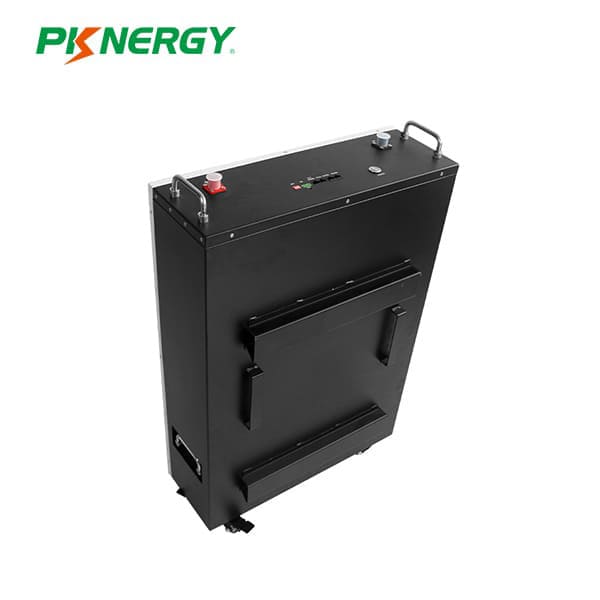

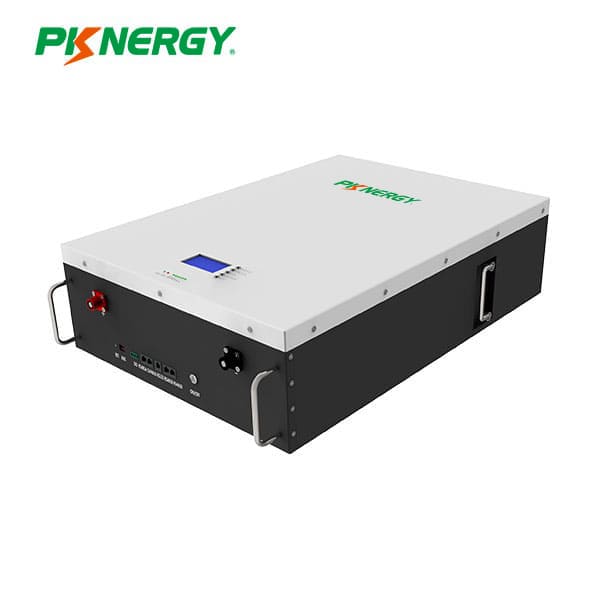

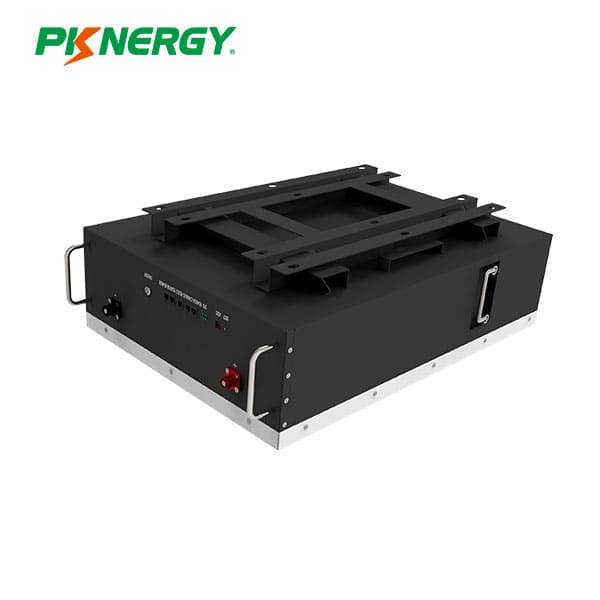

48v 200Ah 10Kwh Wall-Mount LiFePO4 Battery with Roller is pack designed as an Energy storage system ess battery module. It can be used in series or in parallel. It is compatible with all industry-leading standard solar charge controllers, inverters.
Superior chemical and thermal stability, Lithium Iron Phosphate battery pack is the safest in the lithium-ion family. It includes Canbus, RS485 communication， Modules can be connected in parallel, and paralleled modules that communicate through RS485. Battery modules communicate with the inverter via the CAN interface. Compatible with CANBUS protocol, compatible with Growatt, Goodwe, Deye inverter.Supports parallel, Best for energy storage, and more extended cycle life Module Applications. This 10kwh energy storage system battery is easy to install and keep in parallel households, small industrial businesses, tiny houses, and homes.

Battery Pack specifications

Model	PKNERGY-5000W	PKNERGY-7000W	PKNERGY-10000W
Nominal Voltage	51.2V(16series)
Capacity	100Ah	150Ah	200Ah
Energy	5120Wh	7680Wh	10240Wh
Internal Resistance	≤30mΩ
Cycle Life	≥5000 cycles @ 80% DOD, 25℃, 0.5C
Design Life	≥10 years
Charge Cut-off Voltage	56.0V±0.5V
Max. Continuous Work Current	100A/150A(Can choose)
Discharge Cut-off Voltage	45V±0.2V
Charge Temperature	0℃~60℃ (Under 0℃ extra heating mechanism)
Discharge Temperature	-20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature	-40℃~55℃ @ 60%±25% relative humidity
Dimensions	680 x485 x180(220)mm
Weight	Approx: 62kg	Approx: 79kg		Approx: 98kg
	RS232-PC,RS485(B)-PC
Protocol (optional)	RS485(A)-Inverter,Canbus-Inverter
Certification	UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
