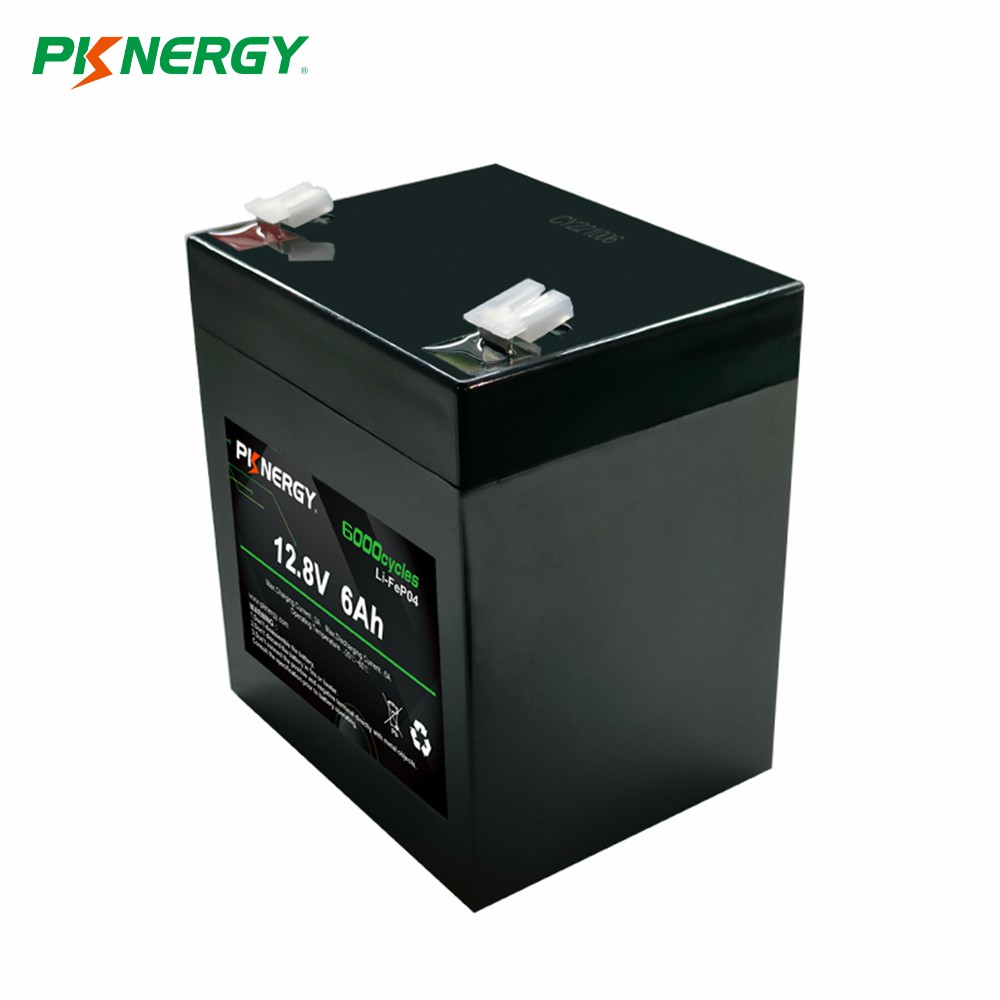

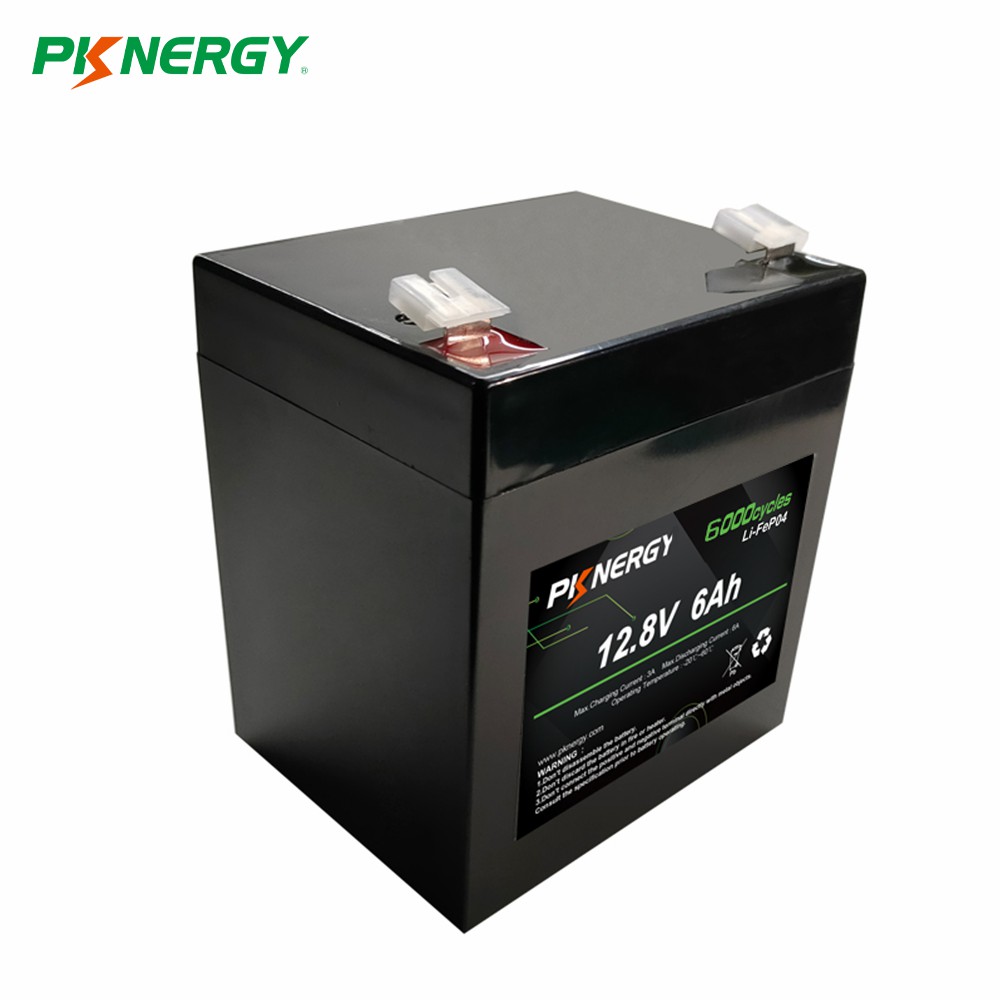

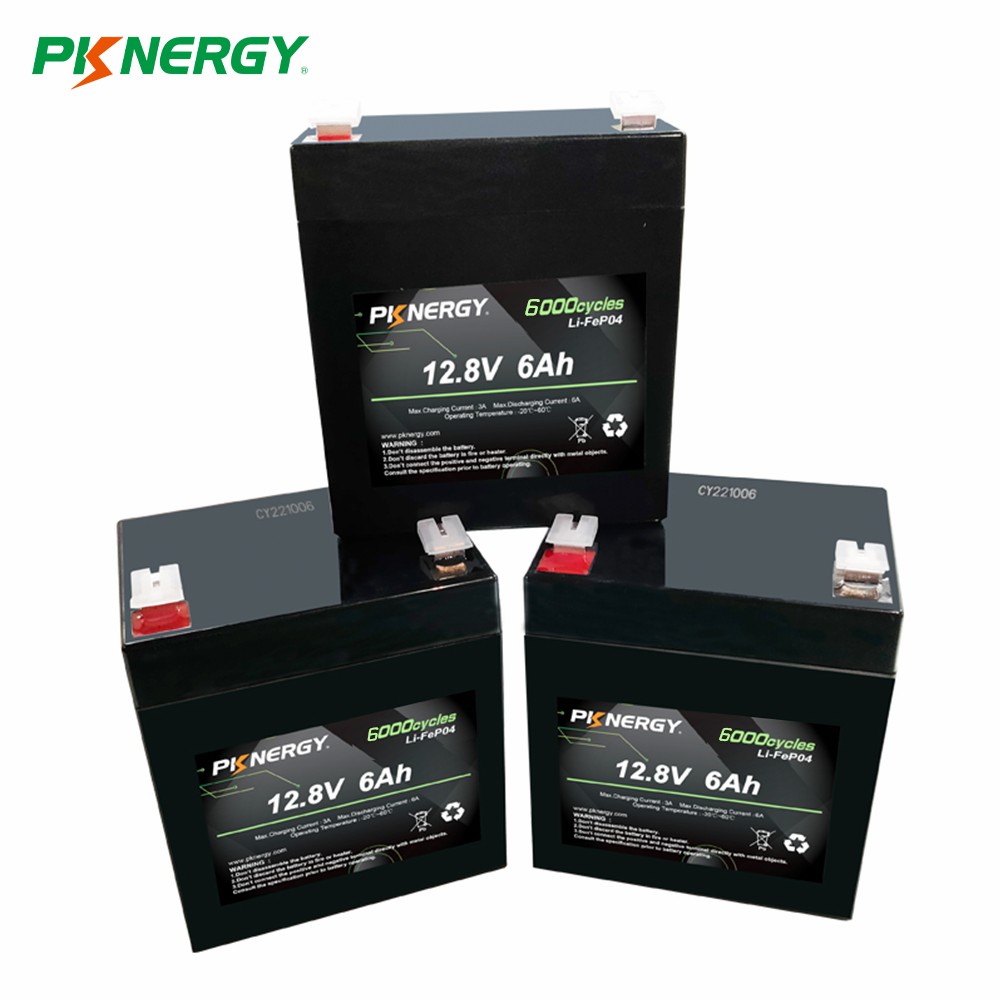

PKNERGY 12.8V 6Ah-Grade A LiFePo4 Battery Pack

Short Description:

Brand Name : 12.8V 6Ah LifePO4 Lithium Battery Pack

Voltage : 12.8V

Capacity: 6Ah

Color : Black/ Customized

Warranty : 5 years

Certificate : CE/ROSH/MSDS/UN38.3/IEC/ISO9001/ISO1400

Battery Cell: LiFePO4 Battery Cell

Usage : Electric Power, Car, Bus, UPS, Lighting, Electric Bicycle,Boat

Size : 90*70*101mm

Weight : Approx 0.8Kg

Packing : Wooden Box / Carton Packing


Product Detail

Product Tags

Lithium replace lead acid batteryPKNERGY Lithium Iron Phosphate ( LiFePO4 ) batteries are developed to deliver high efficiency energy output batteries. They are able to accept continuous high rate charging amps which make the battery fully charged in short time and improve the load service efficiency significantly. The built-in advanced BMS ensures intelligent automatic protection against over voltage, over current, over discharge, over temperature.

Features:

A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

B. Long life-cycle: Can be circularly used, best can up to 6000 times recycles , 8 times of Lead acid battery.

C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

D. Good performance at high temperature and high temperature resistance

E. Low self-discharge rate, less than 3% monthly.

F. No memory effects and highly efficient charge.

G. Environment friendly: Clean and Green energy poses no pollution on our environment.

Specification

  Electrical Characteri stics Nominal Voltage 12.8V
Nominal Capacity 6Ah@0.2C

Energy

76.8Wh
Internal Resistance ≤55mΩ
Cycle Life 6000 Cycles @ 1.2A Charging/Discharging ,Until 80% Capacity
Self Discharge ≤3.5% per month at 25℃
  Standard Charging Max.Charging Voltage 14.0~14.4V
 Charging Mode

At 0℃~45℃ temperature, charged to 14.4V at a constant current of 1.2A, and then,changed continuously with constant voltage of 14.4V until the current was not more than 0.12A

Charging Current 1.2A
Max.Charging Current 3A
  Standard Discharging Discharging Current 1.2A
Max. Continuous Current 10A
Max.Pulse Current 20A(<3S)
Discharging Cut-off Voltage 10.0V
  Operating Condition Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity – 3 -
Water Dust Resistance IP65
  Structure Cell & Format IFR32700 N60&4S1P

Casing

Plastic
Dimension(L*W*H*TH) 90*70*101mm

Weight

Approx:0.8Kg

Terminal

F2

Performance And Test Conditions

  • Using the technology of lithium iron phosphate cell, superior safety, 6000 times cycles, 100% DOD guaranteed before delivery, under normal conditions.
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature.
  • Free of maintenance .
  • Internal cell balancing.
  • Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
  • Replacement for lead-acid battery.
  • Wider temperature range:-20℃~60℃.
  • Support for Series application expansion (up to 25.6V) or two in parallel.

Application

  • UPS
  • Solar &Wind Power System
  • Golf Cart
  • Electric Vehicle , E-bike, E-rickshaw etc.
  • Lighting

Discharge performance graph

5.Discharge performance graphDischarge performance graph

Dimension

Dimension

Safe Characteristic

No.

Item

Testing Instruction Requirement
  1   Over- charge test Charge in accordance with the following two ways ( Choosing one between the two). (1 ) Charge at 1 Ccurrent for 9 0 min or until voltage of some single battery reaches 5 . 0 V ( stop test when fulfills eithercondition). ( 2 ) Charge at 3 C current until the voltage of some single battery reaches 10 . 0 V, then stop the test.  The battery shall not explode or catch fire
  2   Over- discharge test  Charge the battery. Place at 20±5℃ for 1h, then discharge in 1 / 3 C current at same emperature until some cell’ s voltage is 0 V  The battery shall not explode orcatch fire
   3    Short- ircuiting Test

After charge batteries, place at 20 ± 5 ℃ for 1 h. Short the battery for 1 0 min, the external circuit resistance should be less than 5 mΩ.
