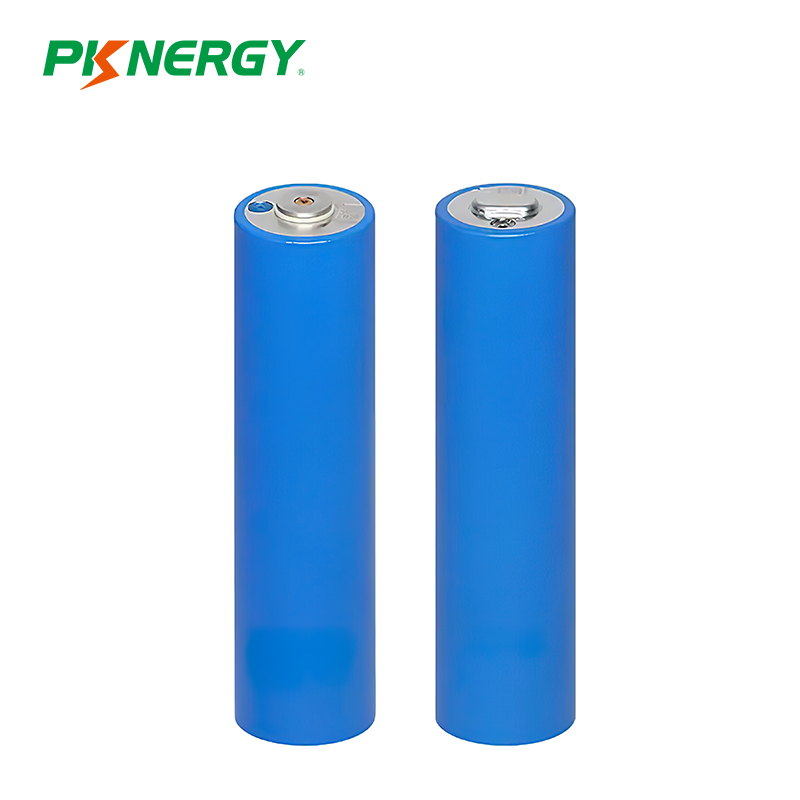

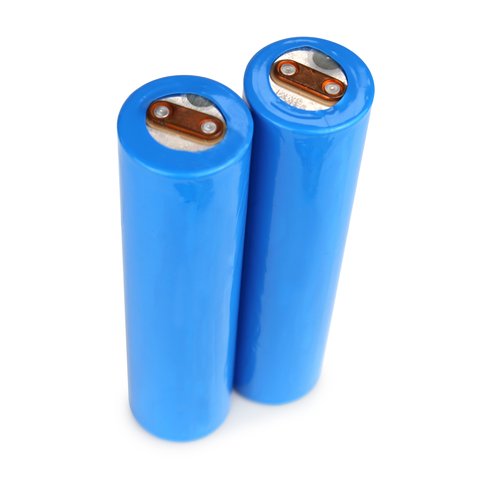

PKNERGY 32140 3.2v LiFePo4 Battery Cell
Product Features:
- High energy density-Advanced technology provides ultra-high capacity LiFePO4 batteries.
- Long cycle life-capacity recovery can be above 80% after 2000cycles.
- Safety-All batteries are equipped with multiple safety features, including a safe shut-down separator and a safety vent.
- Excellent Performance-Excellent charging and discharging performance.
- Various Products-Hundreds of moulds from micro size 200mAh to large capacity 6000mAh.
| Item | Rating | Note |
|---|---|---|
| Model | 32140 | 32*140mm |
| Nominal Capacity | 15Ah | Standard discharge, 0.2C discharge, 2.0V cut-off |
| Nominal Voltage | 3.20V | |
| Standard Charge Current | 0.2C | 0.2C, 3.650V (CC-CV) 0.03C cut off. |
| Standard Discharge Current | 0.2C | 0.2C, 2.0V cut off. |
| Maximum Discharge Current | 15A | 1.0C, Continuous Current |
| 45A | 3.0C, Peak Current | |
| Weight | 270 | ±3g |
| Operating Temperature | 0~45℃ | Charge |
| -20~60℃ | Discharge | |
| Storage Temperature | -20~45℃ | 1month |
| -20~35℃ | 3month | |
| -20~20℃ | 1year | |
| Application | Golf Cart, Electronic Mowers, E-bike, show light, Electronic Wheel Chair, UPS, Security Products, Portable Refrigerator… | |
Applications
- Lithium battery is a type of battery that uses lithium metal or lithium alloy as the positive/negative electrode material and uses a non-aqueous electrolyte solution.
- Lithium batteries can be roughly divided into two categories: lithium metal batteries and lithium ion batteries. Lithium-ion batteries do not contain metallic lithium and are rechargeable.
- 32140 lithium ion battery is with lifepo4 as positive electrode,the size 32mm*140mm high.32140 can be battery pack,prismatic cell for many applications,such as solar storage,RV,home energy system,E-car,bicycle etc.
- PKNERGY 32140 supplies good quality and real 15000mah capacity.
PKNERGY Custom Battery
PKNERGY focus on helping our customers design the best custom battery pack products that are the most cost effective, environmentally safe and exceed all of their specifications. Our offering of batteries and custom battery packs allows us to work with our customers and their engineering teams to manage the power needs of their end products. Our goal is to exceed your specifications while keeping you under budget.
 |
ExperiencePknergy is a battery manufacturer with 20 years of battery production experience in China, we are committed to providing high-quality various batteries to the world. We have more than 200 employees in China and battery factories with a total area of more than 10,000 square meters spread across various locations. The batteries produced are widely recognized in China and other regions! |
Wide range of productsPknergy provides lithium ion battery, lithium polymer battery and lifepo4 battery production, you can customize the battery or battery pack that best suits you here. |
 |
 |
Efficient servicePknergy have more than twenty professional battery designers, and we promise to provide you with the most professional battery solution within 1 day!
|
Serial productionPknergy has 18 high-speed production lines and humanized and efficient team arrangements, and each customized battery project has a one-to-one project manager with rich experience. With these resources combined, you can get your battery sample within 1 week! |
 |
 |
High speed logisticsPknergy cooperates with more than 20 logistics companies to transport goods to any country in the world. And our company is located in Shenzhen, one of the largest ports in China. We will choose the most suitable logistics in the fastest time to help your business take off! |
Quality AssuranceAll Pknergy products are strictly inspected and quality controlled by project managers. At the same time, we are equipped with complete after-sales service. The shelf life is up to 10 years, giving you no worries about your battery. |
 |
Didn’t find the battery you need? Please send us your requirements, Pknergy can produce any model of battery! Get custom batteries for your project production!
