PKNERGY 32700 LiFePO4 Battery Cell 3.2V 6000mah
Large scale production makes the LiFePO4 32700 3.2V6000mAH cell become the most cost-effective cell in all lithium iron phosphate cylindrical cells in the world. LFP 327000 3.2V 6000mAh, Maximum 1C charge and 3C discharge, more than 2000 life cycle at 1C charge&discharge and 100% DOD.
Features
Sturdy and pressure resistant steel envelope
High capacity
Excellent cycle life
Excellent high and low temperature performance
Steady output voltage
Low self-discharge
Double safety protection
With outstanding high level of vibrations and shocks
Applications
Energy storage, Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, UPS.
Individual cells should be integrated in specific battery pack according to the demands.The battery pack together with electronic system provides performance, thermal and safety management.

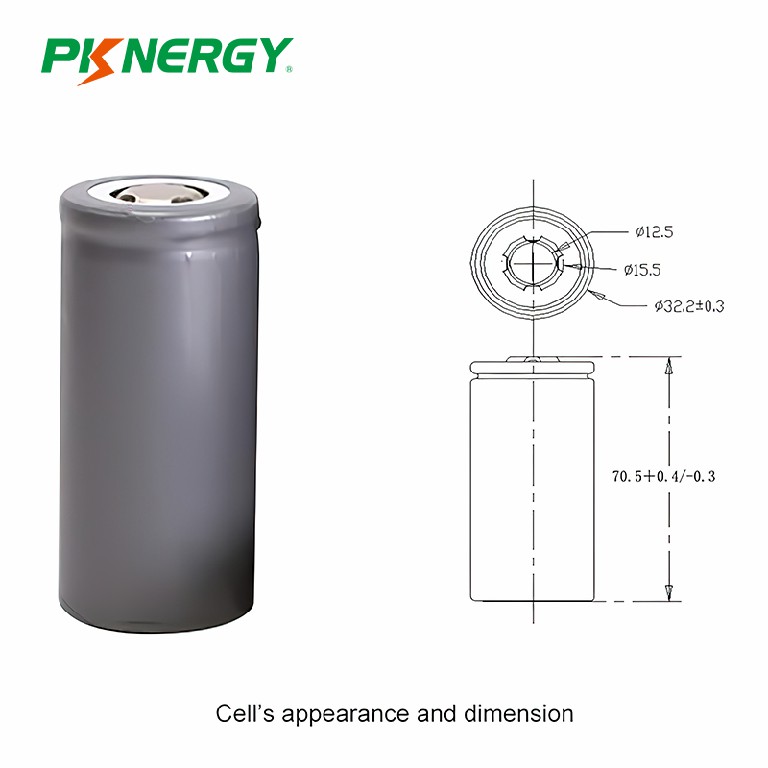

Dimensions
Characteristics
| Item | Condition/ Note | Specification |
| Nominal Capacity | 1C discharge capacity | 6.0Ah |
| Nominal Voltage | 3.2V | |
| AC Impedance | At AC 1000 Hz | 8mΩ |
| Cell Size | Cell Diameter | 32.2±0.3 mm |
| Cell Height | 70.5+0.4/-0.3 mm | |
| Cell Weight | 140± 5 g | |
| End-of-charge Voltage | CC Mode | 3.65V |
| End-of-charge Current | CV Mode | 0.3A |
| Charging Method | Standard Charging | ≤1C at CC/CV |
| End-of-discharge Voltage | CC Mode | 2.0V |
| Max continuous Discharging Current | 18A(3C) | |
| Max Pulse Discharging Current | 60A(10C), 3s | |
| Cycle Life | 1 C/100 % DOD | ≥2000 cycles |
| Operating Temperature Range | Charging Temperature | 0~60 °C |
| Discharging Temperature | -20~ 60°C | |
| Storage Temperature | -20~ 45°C |
