3.2V 280AH 202AH LIFEPO4 BATTERY CELL for storage battery

Short Description:

Extrema light weight, Extended cycle life,Low Self Discharge, Superior Cranking Power,Completely Sealed and Environmental lifepo4 battery, especially developed for Large-scale electric vehicles, Light electric vehicles, Electric ship,Golf cart, Power tools,solar equipment and so on. The price of this battery come with Bus bars and Bolts, one battery will come with one set bus bar and bolt (e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)


Product Detail

Product Tags

PKNERGY lifepo4 battery cells are built to endure, with a significantly longer cycle life compared to traditional lithium-ion batteries. They can withstand thousands of charge and discharge cycles, making them a cost-effective and sustainable choice.

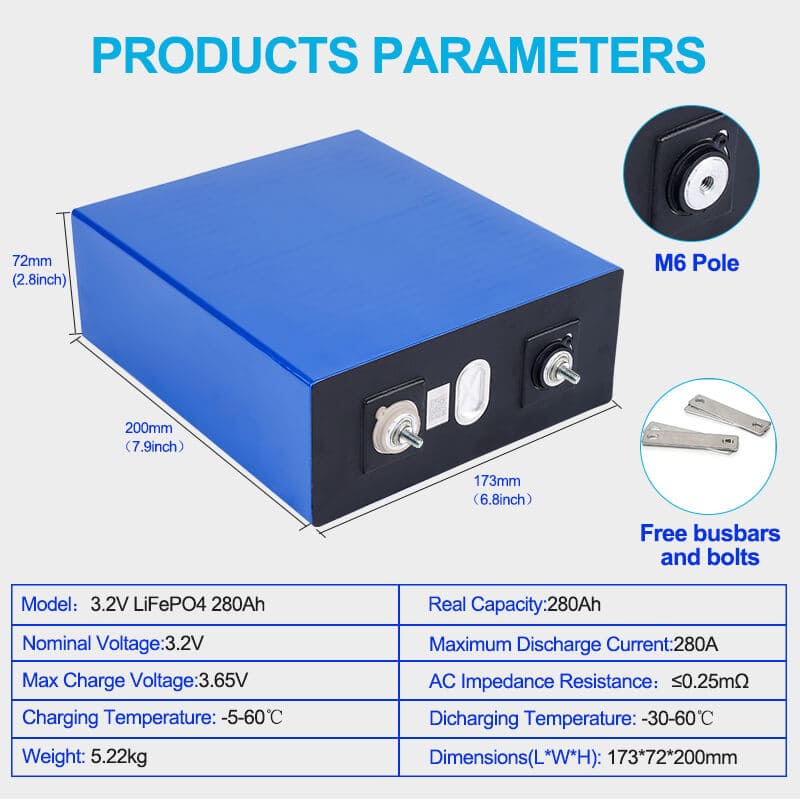

PRODUCT SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS

VOLTAGE: 3.2V
NOMINAL CAPACITY: 280Ah
NOMINAL ENERGY: 896Wh
CYCLE LIFE: ≥4000 times

MECHANICAL SPECIFICATIONS

DIMENSION(LXWXH): 72*174*205mm
WEIGHT: 5.3Kg
CELL TYPE/CHEMISTRY: Cylindrical LiFePO4
TERMINALS: standard Screw terminals

CHARGE&DISCHARGE SPECIFICATIONS

CHARGE METHOD: CCCV
CHARGE VOLTAGE: 2.5-3.65V
MAX. CHARGE CURRENT: 280A
END OF DISCHARGE VOLTAGE: 2.5V
DISCHARGE CURRENT CONTINUOUS: 280A

TEMPERATURE SPECIFICATIONS

CHARGE TEMPERATURE: 0℃~45℃
DISCHARGE TEMPERATURE: -20℃~60℃
STORAGE TEMPERATURE: 15~+35℃

COMPLIANCE SPECIFICATIONS:

CERTIFICATION: RoHs, CE
SHIPPING METHOD: Expressage, by Sea, by Railway, by Air

COMPLIANCE SPECIFICATIONS:

THE BATTERY CAN BE IN SERIES IN 4 OR IN PARALLEL IN 4, BUT NOT AT THE SAME TIME.
