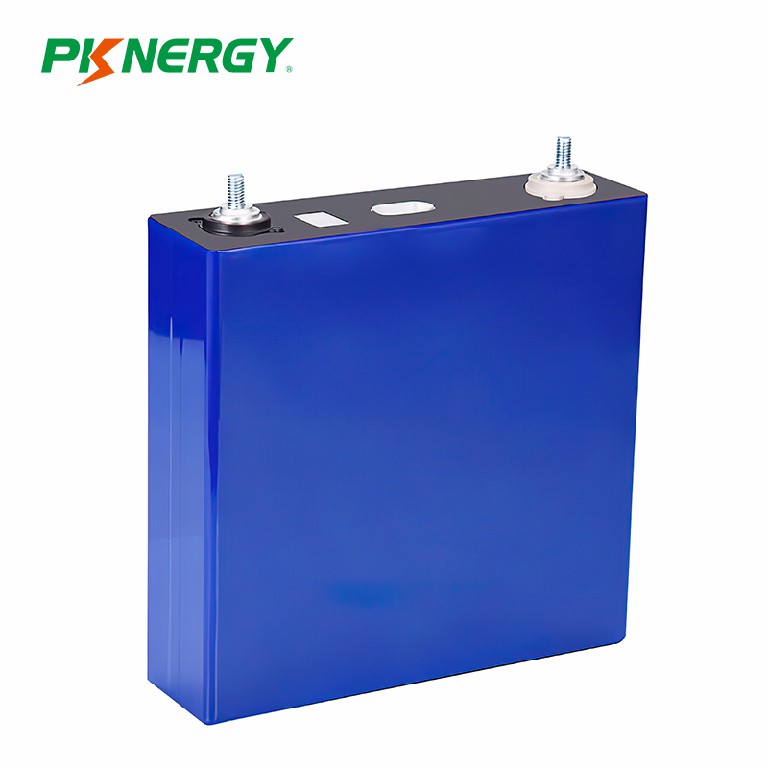

PKNERGY 3.2V 150AH LiFePO4 Battery Cell for Electric Vehicle

Short Description:

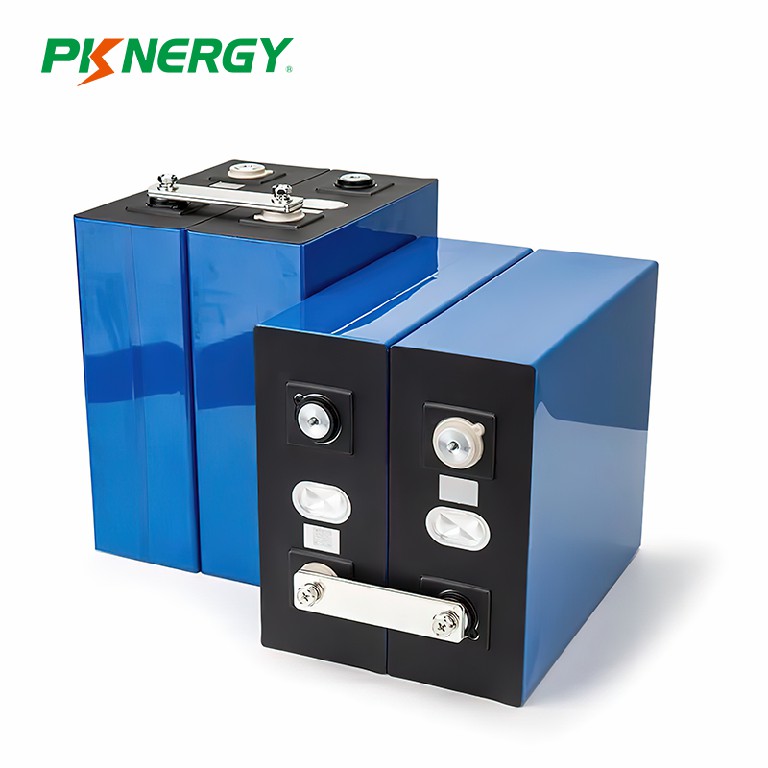

Extrema light weight, Extended cycle life,Low Self Discharge, Superior Cranking Power,Completely Sealed and Environmental lifepo4 battery, especially developed for Large-scale electric vehicles, Light electric vehicles, Electric ship,Golf cart, Power tools,solar equipment and so on. The price of this battery come with Bus bars and Bolts, one battery will come with one set bus bar and bolt (e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)


Product Detail

Product Tags

PRODUCT SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS

VOLTAGE: 3.2V
NOMINAL CAPACITY: 150Ah
NOMINAL ENERGY: 480Wh
CYCLE LIFE: ≥4000 times

MECHANICAL SPECIFICATIONS

DIMENSION(LXWXH): 33*200*207mm
WEIGHT: 3.2Kg
CELL TYPE/CHEMISTRY: Prismatic LiFePO4
TERMINALS: standard Screw terminals

CHARGE&DISCHARGE SPECIFICATIONS

CHARGE METHOD: CCCV
CHARGE VOLTAGE: 2.5-3.65V
MAX. CHARGE CURRENT: 150A
END OF DISCHARGE VOLTAGE: 2.5V
DISCHARGE CURRENT CONTINUOUS: 150A

TEMPERATURE SPECIFICATIONS

CHARGE TEMPERATURE: 0℃~45℃
DISCHARGE TEMPERATURE: -20℃~60℃
STORAGE TEMPERATURE: 15~+35℃

COMPLIANCE SPECIFICATIONS:

CERTIFICATION: RoHs, CE
SHIPPING METHOD: Expressage, by Sea, by Railway, by Air

COMPLIANCE SPECIFICATIONS:

THE BATTERY CAN BE IN SERIES IN 4 OR IN PARALLEL IN 4, BUT NOT AT THE SAME TIME.
