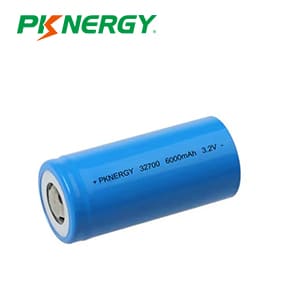

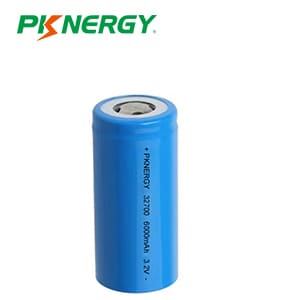

PKNERGY 32700 3.2V 6000mah LiFePO4 Battery Cell

Short Description:

Large scale production makes the LiFePO4 32700 3.2V6000mAH cell become the most cost-effective cell in all lithium iron phosphate cylindrical cells in the world. LFP 327000 3.2V 6000mAh, Maximum 1C charge and 3C discharge, more than 2000 life cycle at 1C charge&discharge and 100% DOD.




Product Detail

Product Tags

Large scale production makes the LiFePO4 32700 3.2V6000mAH cell become the most cost-effective cell in all lithium iron phosphate cylindrical cells in the world. LFP 327000 3.2V 6000mAh, Maximum 1C charge and 3C discharge, more than 2000 life cycle at 1C charge&discharge and 100% DOD.

Features
Sturdy and pressure resistant steel envelope

High capacity

Excellent cycle life

Excellent high and low temperature performance

Steady output voltage

Low self-discharge

Double safety protection

With outstanding high level of vibrations and shocks
Applications
Energy storage, Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, UPS.
Individual cells should be integrated in specific battery pack according to the demands.The battery pack together with electronic system provides performance, thermal and safety management.

Characteristics

Item Condition/ Note Specification
Nominal Capacity 1C discharge capacity 6.0Ah
Nominal Voltage   3.2V
AC Impedance At AC 1000 Hz 8mΩ
Cell Size Cell Diameter 32.2±0.3 mm
  Cell Height 70.5+0.4/-0.3 mm
Cell Weight   140± 5 g
End-of-charge Voltage CC Mode 3.65V
End-of-charge Current CV Mode 0.3A
Charging Method Standard Charging ≤1C at CC/CV
End-of-discharge Voltage CC Mode 2.0V
Max continuous Discharging Current   18A(3C)
Max Pulse Discharging Current   60A(10C), 3s
Cycle Life 1 C/100 % DOD ≥2000 cycles
Operating Temperature Range Charging Temperature 0~60 °C
  Discharging Temperature -20~ 60°C
  Storage Temperature -20~ 45°C
