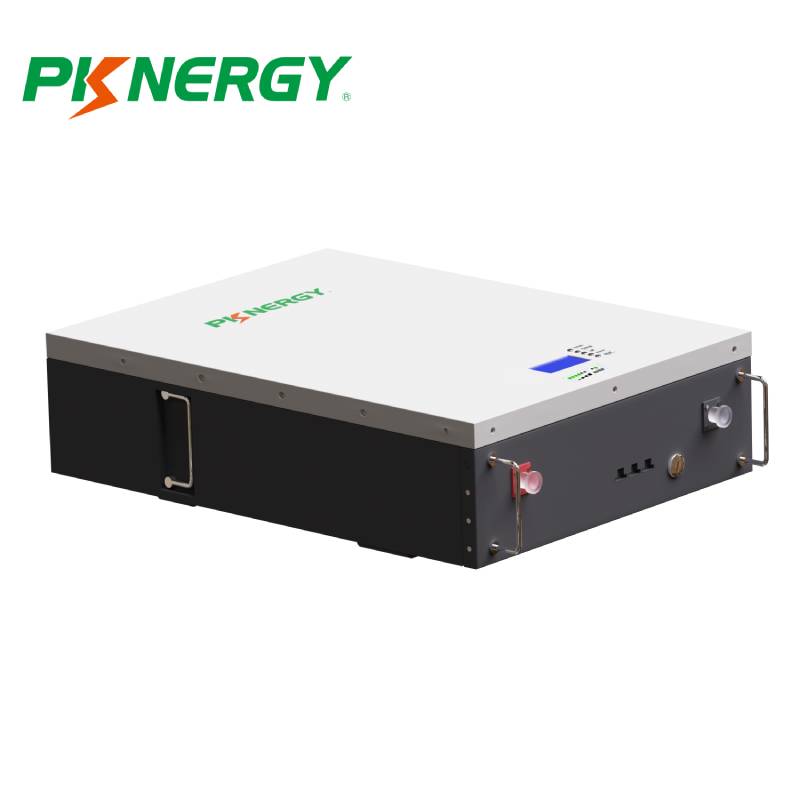

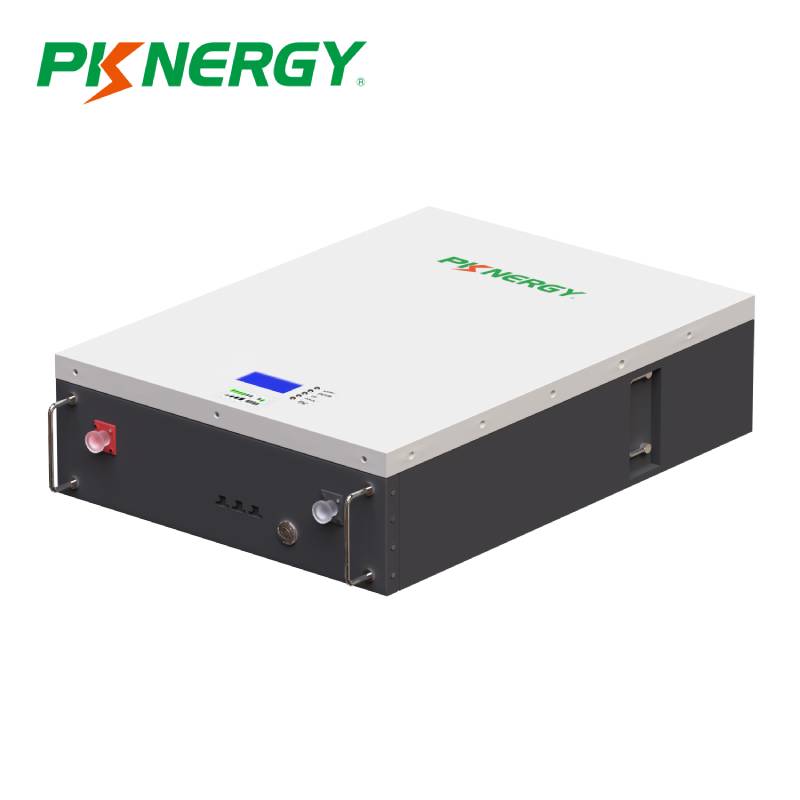

PKNERGY Powerwall 48V 100Ah 5Kwh LiFePO4 Battery Home Energy Storage

Short Description:

PKNERGY Commercial Solar Battery Storage – Solar Battery

  1. Product name: 48V 100Ah 5kwh Powerwall LiFePO4 Battery
  2. Application: Home
  3. Battery Type: LiFePO4
  4. Voltage:48V
  5. Capacity:100Ah
  6. Controller Type: MPPT
  7. Work Time (h): 24 hours
  8. Certificate: CE, UN38.3, MSDS,IEC/ISO9001/ISO1400
  9. Dimension: 680*480*180mm
  10. Cycle life: Over 7000 times at 80%DOD
  11. Cell type: 3.2v 100ah Lifepo4 Prismastic battery Cell


Product Detail

Product Tags

PKNERGY-5KWH 7KWH 10KWH 15KWH 20KWH Powerwall Battery Manufacturer

Introduction of Solar Battery

Commercial solar battery storage has become an essential component for businesses looking to reduce energy costs and increase reliability. By utilizing solar battery storage systems and solar batteries, businesses can store energy generated during peak periods and use it when demand is high, ensuring a steady source of energy.

Compatibility of Solar Battery

The 51.2v 100Ah 5Kwh Wall-Mount LiFePO4 Battery with Roller is an excellent energy storage solution for commercial establishments. Its superior chemical and thermal stability ensures that it is the safest lithium-ion battery pack available. With its Canbus and RS485 communication, the battery modules can easily connect in parallel, enabling paralleled modules to communicate through RS485. The battery modules communicate via the CAN interface with the inverter, making it compatible with CANBUS protocol, Growatt, Goodwe, and Deye inverters, and best for energy storage. Moreover, it supports parallel operation, making it ideal for businesses that require a more extended cycle life.

Applications of Commercial Solar Battery Storage

This 5kwh energy storage system battery is perfect for use in households, small industrial businesses, tiny houses, and homes. It is easy to install and maintain and is compatible with all industry-leading standard solar charge controllers and inverters.

Benefits of Solar Battery Storage for Commercial Establishments

Commercial solar battery storage with solar batteries offers numerous benefits, including energy cost savings, increased energy independence, and reducing the carbon footprint of businesses. By investing in the 51.2v 100Ah 5Kwh LiFePO4 Battery, businesses can enjoy all these benefits and more.

The best solution for commercial solar cell storage

Investing in commercial solar battery storage solutions such as the 51.2v 100Ah 5Kwh LiFePO4 Battery with Roller is a sound decision for businesses looking to boost energy reliability, reduce costs, and increase energy independence. Its safety, compatibility, and easy installation with solar batteries make it the ideal solution for any business seeking a reliable and efficient energy storage system.

Features

- 51.2v LFP-based ESS, long life expectancy of 10+ years.

- Battery bank Expandable in parallel as power needs to increase.

- Operates at 98% efficiency for more than 6000 times cycles.

- Offer up to 100% depth of discharge.

- integrated battery management system ( BMS ).

- Flexible control that covers all commercial fields.

- Quick and Easy Installation, Maintenance-free.

Battery Pack specifications

Model

PKNERGY-5000W

PKNERGY-7000W

PKNERGY-10000W

Nominal Voltage

51.2V(16series)

Capacity

100Ah

150Ah

200Ah

Energy

5120Wh

7680Wh

10240Wh

Internal  Resistance

≤30mΩ

Cycle Life

≥5000 cycles @ 80% DOD, 25℃, 0.5C

Design Life

≥10 years

Charge Cut-off Voltage

56.0V±0.5V

Max. Continuous Work Current 100A/150A(Can  choose)

Discharge Cut-off Voltage

45V±0.2V

Charge Temperature

0℃~60℃ (Under 0℃ extra heating mechanism)

Discharge   Temperature

-20℃~60℃ (Under 0℃work with reduced capacity)

Storage Temperature

-40℃~55℃ @ 60%±25% relative humidity

Dimensions

680 x485 x180(220)mm

Weight

Approx: 62kg

Approx: 79kg Approx: 98kg


RS232-PC,RS485(B)-PC

Protocol   (optional)

RS485(A)-Inverter,Canbus-Inverter

Certification

UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

Dimension

Unit(mm)

L(length)

680

W(width)

485

H(thickness)

180

L(Exposed wire length)

/

WIRE(Leader)

/

 Terminal model

8mm(Quick plug)

   remarks

Output line:Wire diameter 35mm2,length 2m

Solar Battery Energy System-Pknergy (4)
PKNERGY Battery Match Inverters Brands
PKNERGY Solar LiFePO4  Battery Certifications
Battery Cell Quality (2)
PKNERGY Battery Cell Quality
PKNERGY Factory Show

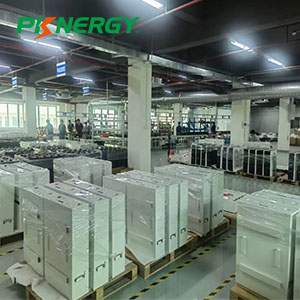

PKNERGY Solar Battery Safe Package
