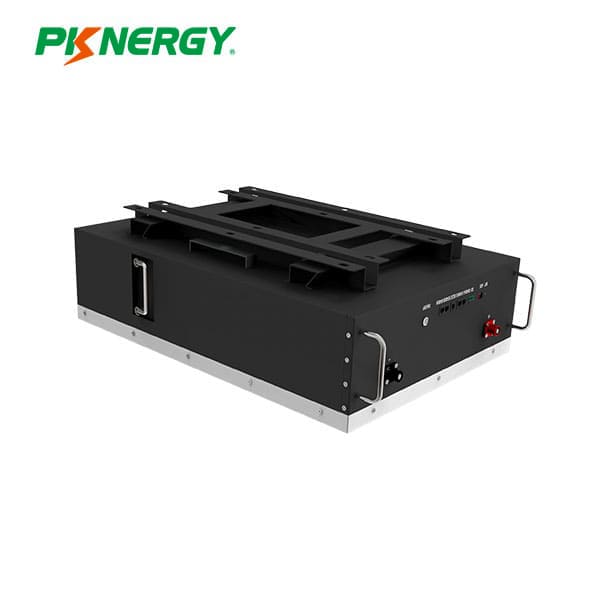

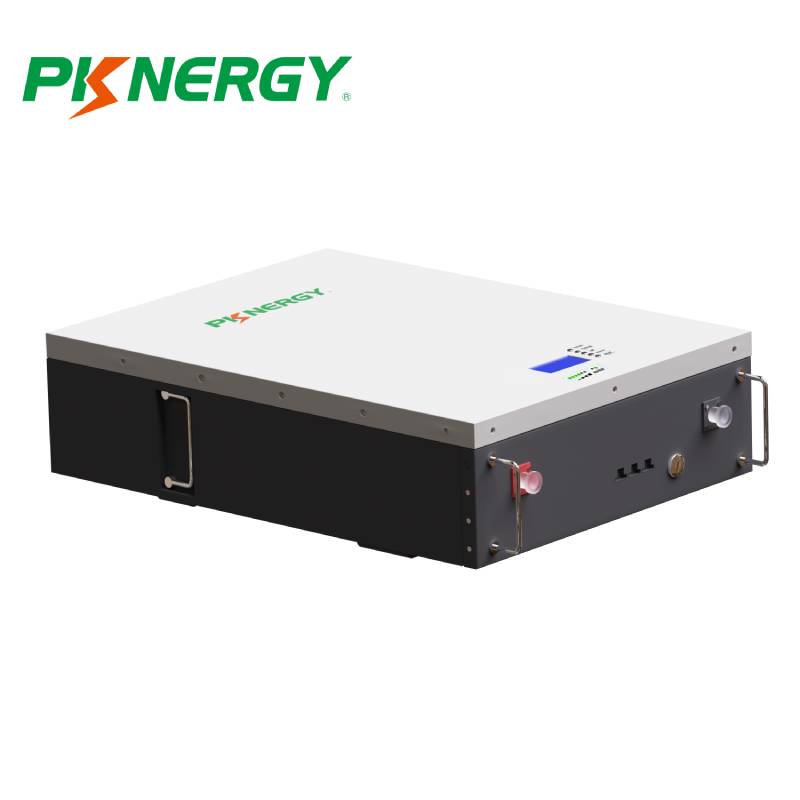

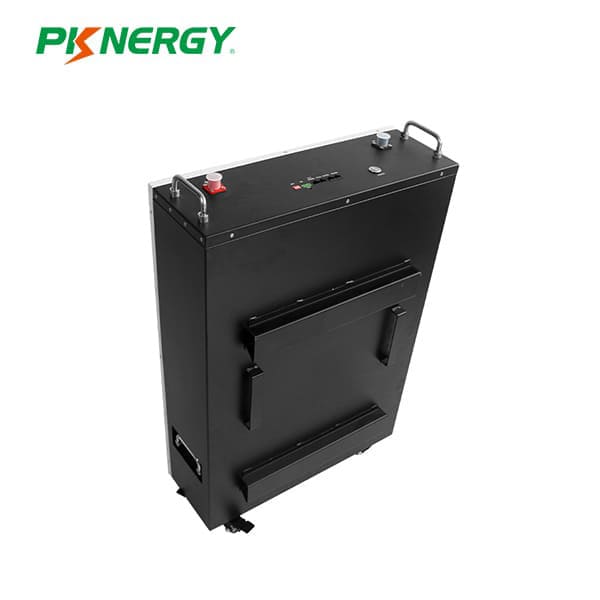

PKNERGY 5Kwh 48V 51.2V 100Ah Wall-Mount LiFePO4 Battery

Short Description:

  1. Product name: 48V 100Ah 5kwh Powerwall LiFePO4 Battery
  2. Application: Home
  3. Battery Type: LiFePO4
  4. Voltage:48V
  5. Capacity:100Ah
  6. Controller Type: MPPT
  7. Work Time (h): 24 hours
  8. Certificate: CE, UN38.3, MSDS,IEC/ISO9001/ISO1400
  9. Dimension: 680*480*180mm
  10. Cycle life: Over 7000 times
  11. Cell type: 3.2v 100ah Lifepo4 Prismastic battery Cell


Product Detail

Product Tags

PKNERGY-5KWH 7KWH 10KWH 15KWH 20KWH Powerwall Battery Manufacturer

48v 100Ah 5Kwh Wall-Mount LiFePO4 Battery with Roller is pack designed as an Energy storage system ess battery module. It can be used in series or in parallel. It is compatible with all industry-leading standard solar charge controllers, inverters. Our lifepo4 battery solar with longer cycle life compared to other lithium-ion chemistries. Which means they can withstand a higher number of charge and discharge cycles before their capacity significantly degrades. So that thelifepo4 battery solar lead to a longer lifespan for the Powerwall and potentially lower maintenance costs over time.
Superior chemical and thermal stability, Lithium Iron Phosphate battery pack is the safest in the lithium-ion family. It includes Canbus, RS485 communication, Modules can be connected in parallel, and paralleled modules that communicate through RS485. Battery modules communicate with the inverter via the CAN interface. Compatible with CANBUS protocol, compatible with Growatt, Goodwe, Deye inverter.Supports parallel, Best for energy storage, and more extended cycle life Module Applications. This 5kwh energy storage system battery is easy to install and keep in parallel households, small industrial businesses, tiny houses, and homes.

Features

- 48v LFP-based ESS, long life expectancy of 10+ years.

- Battery bank Expandable in parallel as power needs to increase.

- Operates at 98% efficiency for more than 5000 times cycles.

- Offer up to 100% depth of discharge.

- integrated battery management system ( BMS ).

- Flexible control that covers all commercial fields.

- Quick and Easy Installation, Maintenance-free.

Battery Pack specifications

Model

PKNERGY-5000W

PKNERGY-7000W

PKNERGY-10000W

Nominal Voltage

51.2V(16series)

Capacity

100Ah

150Ah

200Ah

Energy

5120Wh

7680Wh

10240Wh

Internal  Resistance

≤30mΩ

Cycle Life

≥5000 cycles @ 80% DOD, 25℃, 0.5C

Design Life

≥10 years

Charge Cut-off Voltage

56.0V±0.5V

Max. Continuous Work Current 100A/150A(Can  choose)

Discharge Cut-off Voltage

45V±0.2V

Charge Temperature

0℃~60℃ (Under 0℃ extra heating mechanism)

Discharge   Temperature

-20℃~60℃ (Under 0℃work with reduced capacity)

Storage Temperature

-40℃~55℃ @ 60%±25% relative humidity

Dimensions

680 x485 x180(220)mm

Weight

Approx: 62kg

Approx: 79kg Approx: 98kg


RS232-PC,RS485(B)-PC

Protocol   (optional)

RS485(A)-Inverter,Canbus-Inverter

Certification

UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

Dimension

Unit(mm)

L(length)

680

W(width)

485

H(thickness)

180

L(Exposed wire length)

/

WIRE(Leader)

/

 Terminal model

8mm(Quick plug)

   remarks

Output line:Wire diameter 35mm2,length 2m
