PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery

Short Description:

Battery Type: Lithium ion phosphate Battery
Brand: PKNERGY
Rated voltage: 51.2V
Capacity :100Ah
Size ( mm) :440*440*132
Weight :40kgs/105.82 lbs
Application :Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package :Polywood box


Product Detail

Product Tags

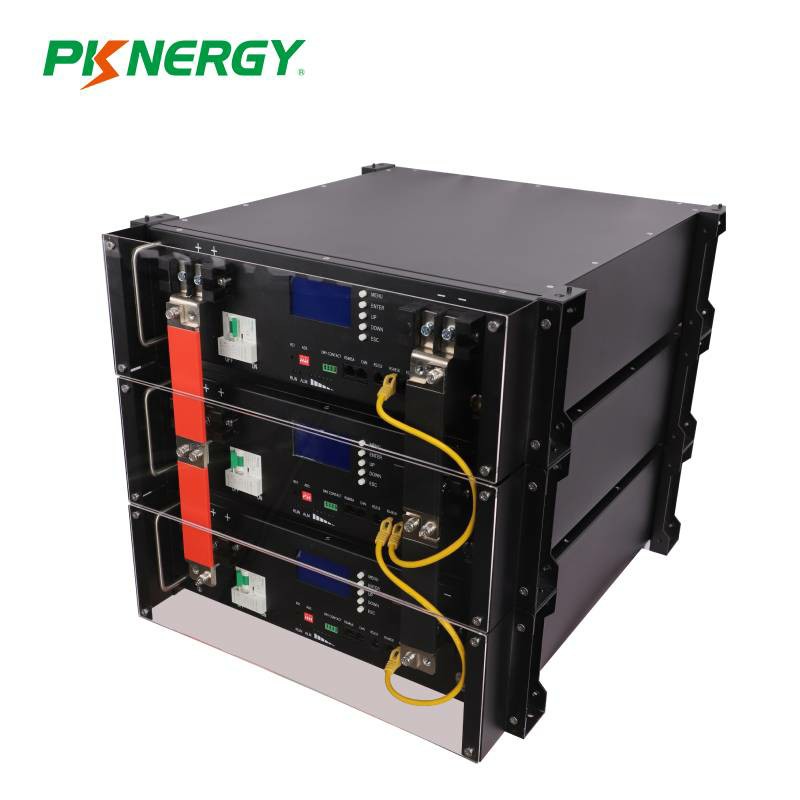

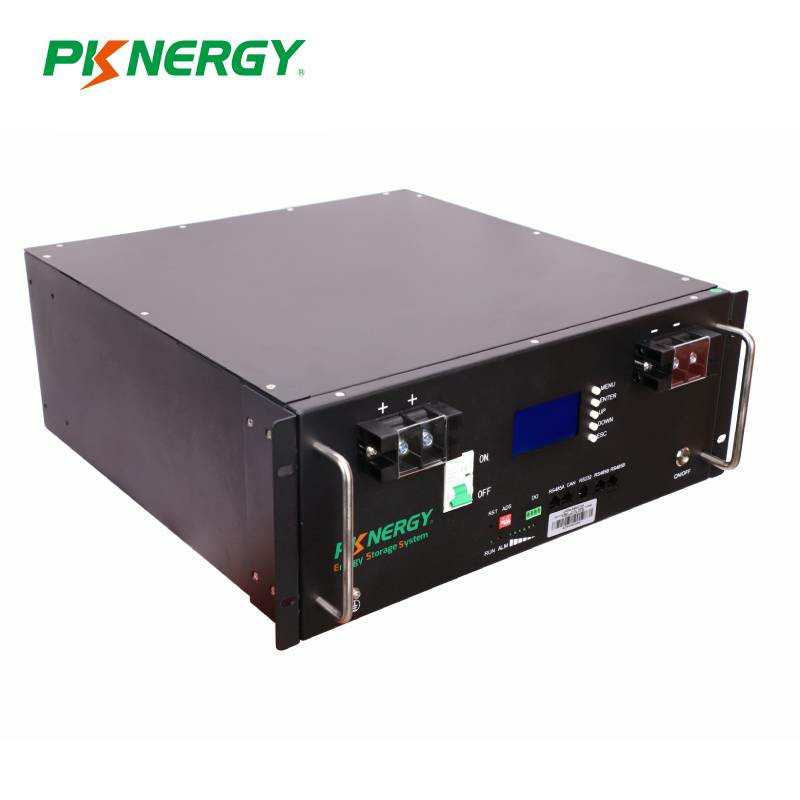

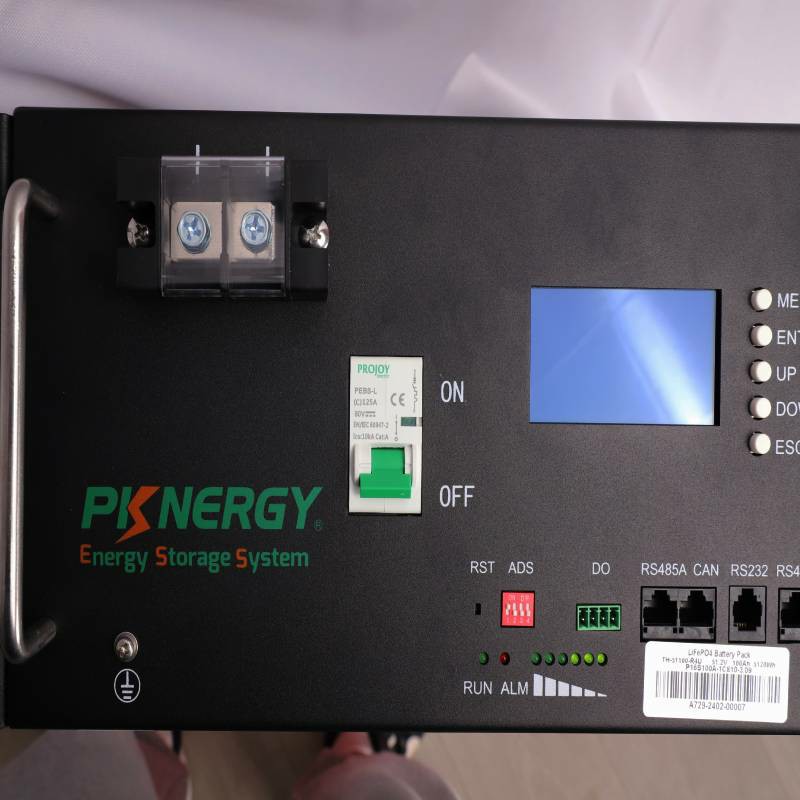

PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery  (1)

PKNERGY 51.2V 100AH Rack Mounted Lifepo4 Battery adopts highly reliable Lithium battery cells for long cycle life and consistent performances.The battery packs use advanced Battery Management System (BMS) to enhance system performance, prolong life and warrant safety. Various sizes valid, easy install, panel customization service, support for parallel expansion for large capacity applications.

Parameter

Package

No.

Item

General Parameter

Remark



1

Combination method



16S1P



51.2V 100Ah





2



Rated Capacity

Typical

100Ah

Standard discharge after Standard charge (package)

Minimum

98Ah



3

Factory Voltage



51V-54V

Mean Operation Voltage







4

Voltage at end of Discharge



40V

Discharge Cut- off Voltage

5

Charging Voltage

57.6V





6

Internal Impedance



≤120m Ω

Internal resistance measured at AC 1 KHZ after 50% charge,The measure must uses the new

batteries that within one week after shipment and cycles less than 5 times

7

Standard charge

Constant Current 0.2C Constant Voltage 57.6V

0.02CA cut-off



Charge time : Approx 6 h



8

Standard discharge



Constant current:0.2C end voltage 51-54V





9

Maximum Continuous

Charge Current

100A

T≥ 10ºC





10

Maximum Continuous

Discharge Current





100A



T≥ 10ºC



11

Operation Temperature

Range



Charge : 0~45℃

60± 25%R .H.

Bare Cell

Discharge : -20~60

12

Storage Temperature Range

Less than 12 months :

-10~35℃



60± 25%R .H.

at the shipment state



less than 3 months: -10~45℃

Less than 7 day : -20~65℃





13

Dimensions

440*440*132mm

Include Bracket



14

Weight

Approx 40kg



Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.

Rack Mounted LiFePo4 Battery Application

6000 CYCLES,20 YEARS OF DESIGN LIFE
Lifepo4 battery life is 10 times longer than ordinary batteries. And can be truly maintenance-free.
Rack-Mounted Batteries(Server Rack Battery)
Electricity in the building is extremely important for energy consumption. And the way to maintain this thing is to use our rack battery. Custom solutions may be more tailored and meet individual needs, please contact us for more information.

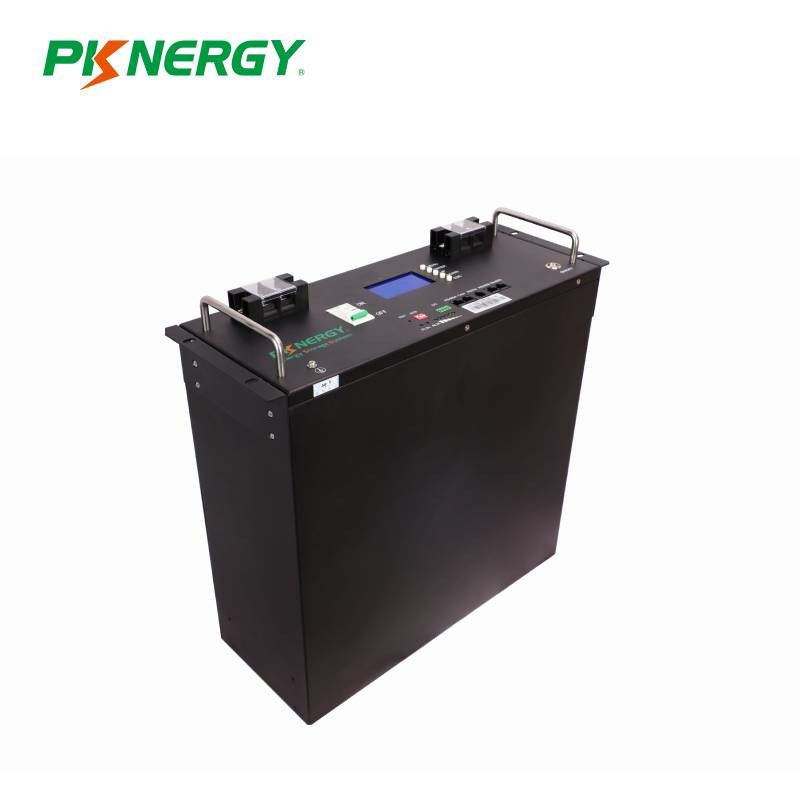

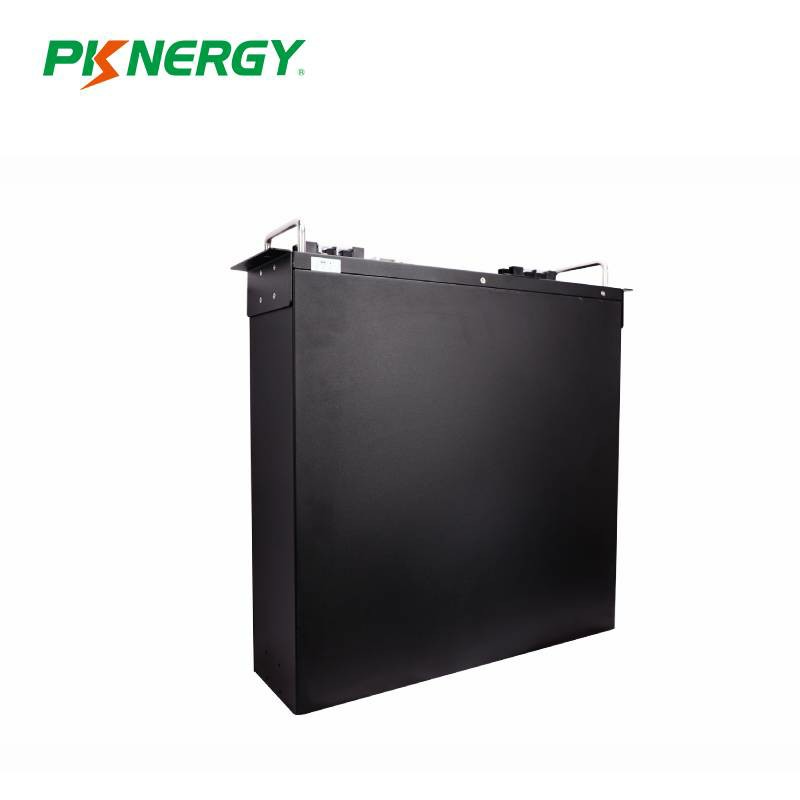

PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery PKNERGY New Design 51.2V 100Ah 5Kwh Rack Mounted Lifepo4 Battery
