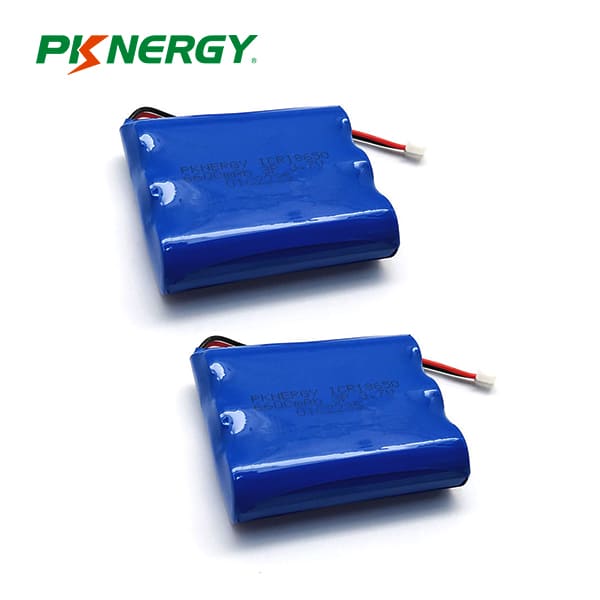

PKNERGY 18650 Lithium Ion Battery Pack – 3.7V 6600mAh Customized
Description
Need a massive battery for your project? This lithium-ion pack is made of 3 balanced 2200mAh cells for a total of 6600mA capacity! The cells are connected in parallel and spot-welded to a protection circuit that provides over-voltage, under-voltage, and over-current protection.
Each cell can provide 0.5C of current (1.1 A per) so all together the peak current you can draw is over 3.3 Amps. Note that these batteries are not designed to sustain such high loads, we suggest keeping any constant current draw under 0.2C or 1.3A.
The packs come with color-coded wires, and now they come with a JST 2-pin cable attached for use with our chargers! Because they have a genuine JST connector, not a knock-off, the cable won’t snag or get stuck in a matching JST jack, they click in and out smoothly. The cables are rated for 2A so if you use them keep that in mind.
The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut out when completely dead at about 3.0V. However, even with this protection, it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 0.25C (1.5A) or less.
Like most lithium-ion packs, the batteries we sell do not have thermistors built-in. This is why we suggest charging at 0.2C or even less – 1A max in this case. Of course, you can charge at a lower rate – it’ll just take a little longer to fill up.
Type
|
Rechargeable Li-ion battery pack | ||
Brand
|
PKNERGY or OEM
|
||
Model
|
ICR18650 6600mAh 11.1V | ||
Cycle life
|
500-1000 times
|
||
Certification
|
CE/RoHS/UN38.3/MSDS
|
||
Package
|
blister card, industrial package or customized…
|
||
PCB/PCM
|
with or without,both ok for us
|
||
Payment Term
|
100%TT in advance
|
||
Price Term
|
FOB (Shenzhen/Guangzhou/HongKong/Shanghai),Ex-works.CIF,C&F…
|
Packing:
Shrink/Blister card/colour box/clamshell/Customized Package
1. All shipping goods are 100% inspected and packed very well.
Our Service:
1.OEM Manufacturing welcome: Product, Package…
2.Sample order
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Additional safety notes:
Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush, or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. Polarity matches all Adafruit LiPoly/LiIon chargers and boards, other brands may have reverse polarity and can destroy your battery. As with all Lithium-ion polymer batteries and with any power source – they should be used by experts who are comfortable working with power supplies.
