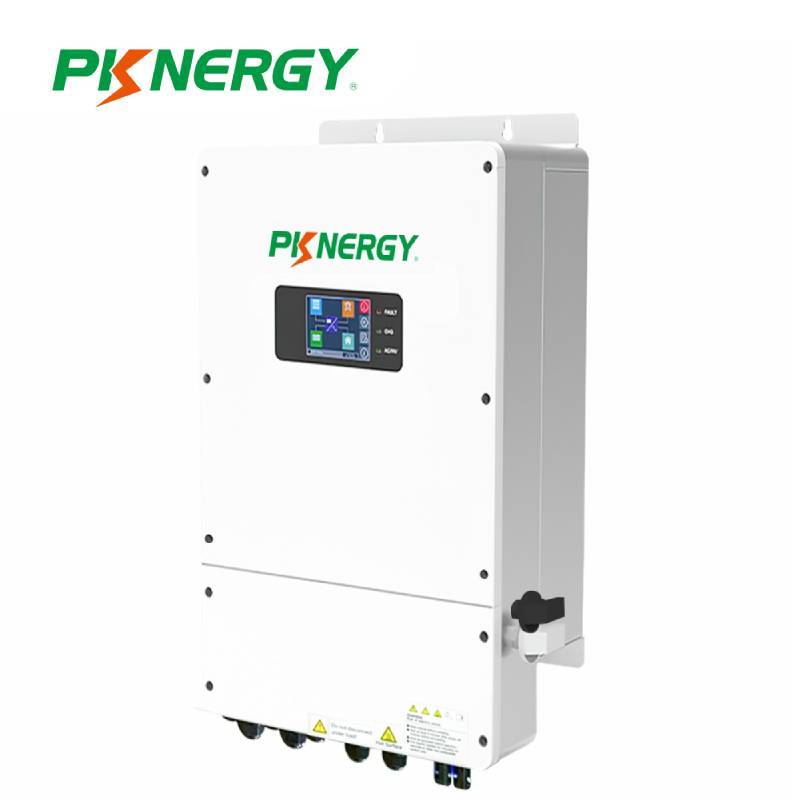

PKNERGY 6KW Hybrid On & Off Grid Energy Storage Solar Inverter

Models：PK-6000-HES

Application：Residential, Home, Solar ESS, Solar backup system

Protection Level：IP65

Screen：Touch-controlled smart LCD, intuitively reflecting AC, DC, and PV data

Parallel Connection：Supports up to 6 parallel machines

Test：Passed IEC61683 energy efficiency test

Appearance：Small size, light weight

SEND EMAIL TO US Download as PDF

Product Detail

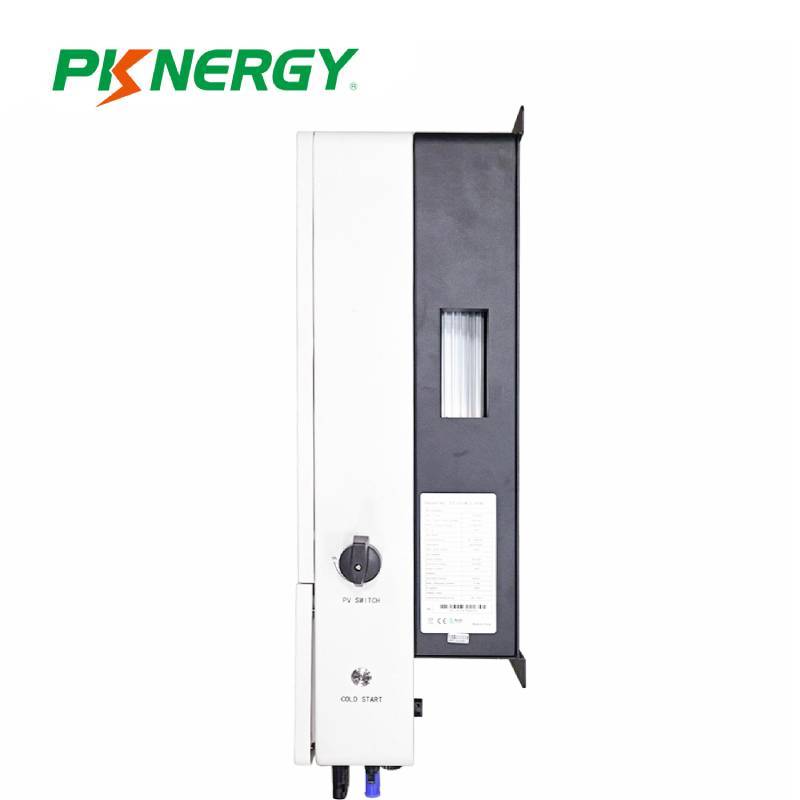

PKNERGY 6-8KW Hybrid On & Off Grid Energy Storage Solar Inverter (1)

Technical Specification	PK-6000-HES
Max.power(kW)	7
Max.DC voltage(V)	550
MPPT voltage range(V)	90-450
Max.current(A)	30
MPPT number/Max.input strings number	1/2
AC OUTPUT(GRID-TIED)
Grid voltage/range(V)	230/90-280(For Personal Computers);170-280(For Home Appliances)
Frequency(Hz)	50/60
PF	0.8lagging-0.8leading
THDi	<3%
AC output topology	L+N+PE
BATTERY
Battery Voltage Range(V)	42-63
Max. charging voltage (V)	63
Max. charge/discharge current (A)	100/120
Battery Type	Lithium/Lead-acid
UPS OUTPUT
Rated power(kW)	6
Rated output voltage(V)	220/230/240
Rated output current(A)	25/27/27.2
Rated frequency (Hz)	50/60
Transfer Time(ms)	<10
THDu	<2%
Overload capacity	5s≥110%load;10s≥101%——110%load
PROTECTION & FEATURE
Anti-island protection	Yes
Insulation monitoring	Yes
Residual current monitoring	Yes
Arc fault protection	Yes(optional)
Parallel function	Yes,6 units
Other protection	AC overcurrent, AC overvoltage, Over temperature protection
General Parameter
Efficiency (Peak)	94%
Degree of protection	IP65
Operation temperature	25°C-60°C，>45°C derating
Cooling	smarting cooling
Relative humidity	0-95%（non-condensing)
Alttude	(>2000m Derating)
Dimesions WxDxH(mm)	345197661
Net Weight(KG)	22.5
Isolation transformer	No
Self-consumption(W)	<5
Display and communication
Display	Touch screen
Interface	Standard: RS232,CAN&RS485, Optical: Bluetooth, WiFi, CT
Safety standard	EN/IEC 62109-1,EN/IEC 62109-2
