Customized Water Breathing Machine Li-ion Battery
Specialty batteries, as a high-performance energy storage solution, play a vital role in a variety of modern technologies and applications. Pknergy provides you with comprehensive information on special batteries, especially for applications in areas such as underwater robots and aquatic breathing machines.
Applications:

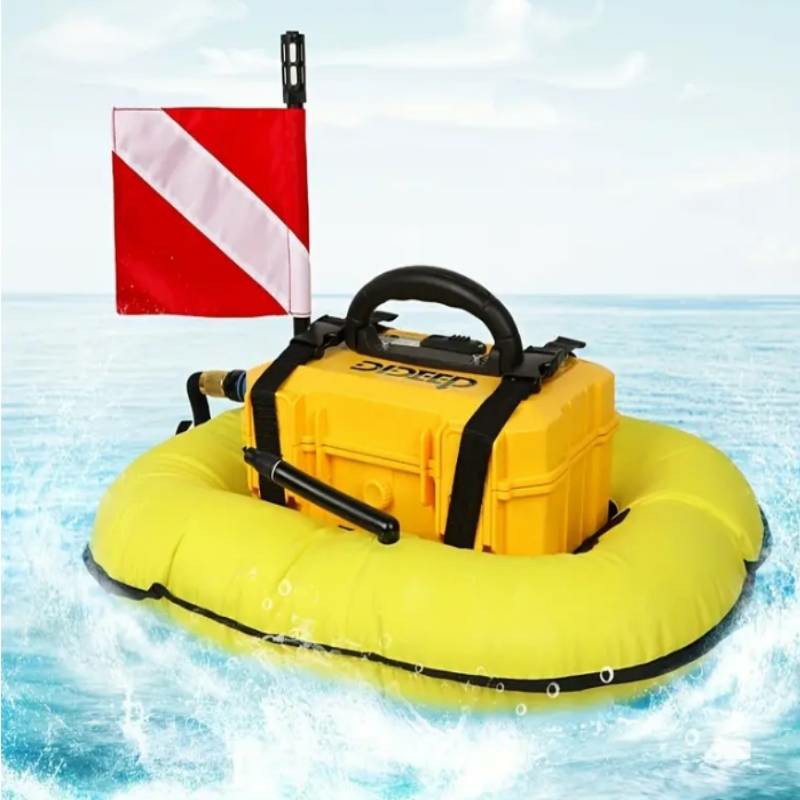

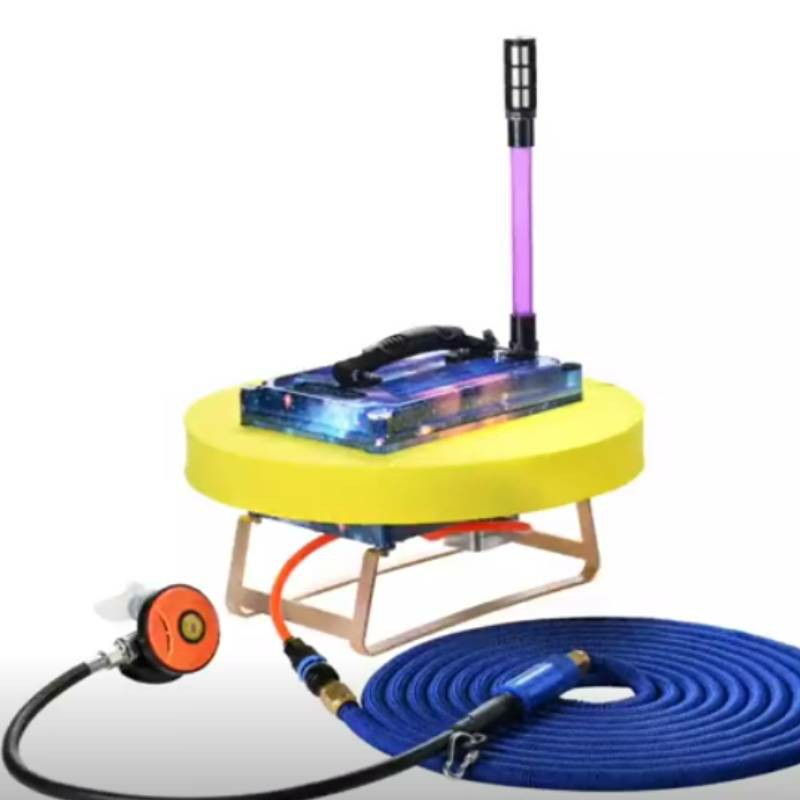

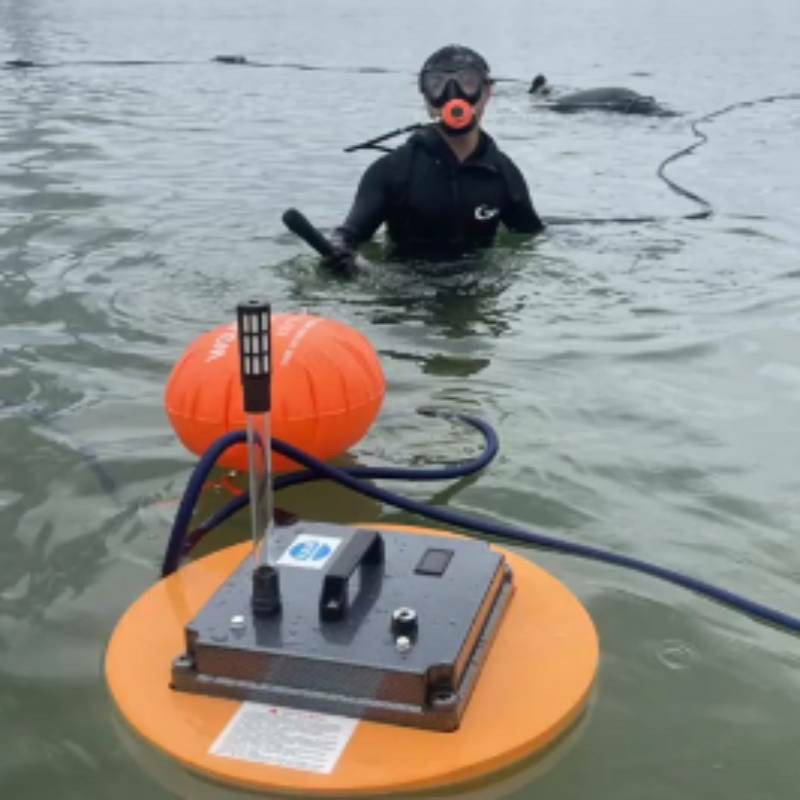

We will show the application cases of underwater robots and water breathing machines in different scenarios, including scientific research and exploration, marine engineering, diving rescue, etc. Through these real cases, you will understand the role and effect of special batteries in these applications, as well as their important role in promoting technological progress and human welfare.
Technical specifications:
We provide detailed technical specifications for special batteries, including capacity, voltage, size, weight, etc. According to different models and uses, we list the technical parameters and performance data of special batteries to help users choose the product that best suits their needs.
|
NO |
Items |
Parameter |
Remarks |
| 2.1 | Rated Capacity
|
5Ah | Discharge:0.2C
:0.2C cut-off voltage:2.8V :2.8V |
| Minimum Capacity
|
4.6Ah | ||
|
2.2 |
Energy | 148Wh | |
|
2.3 |
Nominal Voltage
|
29.6V | |
|
2.4 |
Open Voltage
|
28V-31.2V | |
|
2.5 |
Internal Impedance | ≤200mΩ | AC 1KHz after standard
charge AC 1KHz
|
|
2.6 |
Charge voltage | 33.6V | |
|
2.7 |
Standard charge current
|
1A | 0.2C |
|
22.4 |
Max charge current
|
5A | 1C |
|
2.9 |
Standard discharge current
|
5A | 1C |
|
2.10 |
Max continuous discharge
Current |
15A | 3C |
|
2.11 |
Max Instantaneous discharge
Current |
60-75A | 10mS |
|
2.12 |
Discharge cut-off voltage
|
22.4V | |
|
2.13 |
Operating Temperature
|
0~+45℃ | Charge |
|
2.14 |
Storage Temperature
|
-10~+60℃ | Discharge |
| -20℃～+60℃ | Less than 1 month
|
||
| -20℃～+30℃ | Less than 6 months
|
||
|
2.15 |
Weight | About：1.5kg |
Security and Authentication:
We emphasize the safety and reliability of special batteries, explaining their characteristics such as waterproof, explosion-proof, overcharge prevention, and over-discharge prevention. The special battery has passed a series of certification standards and safety specifications, such as CE certification, UL certification, etc., to ensure product quality and safety.
