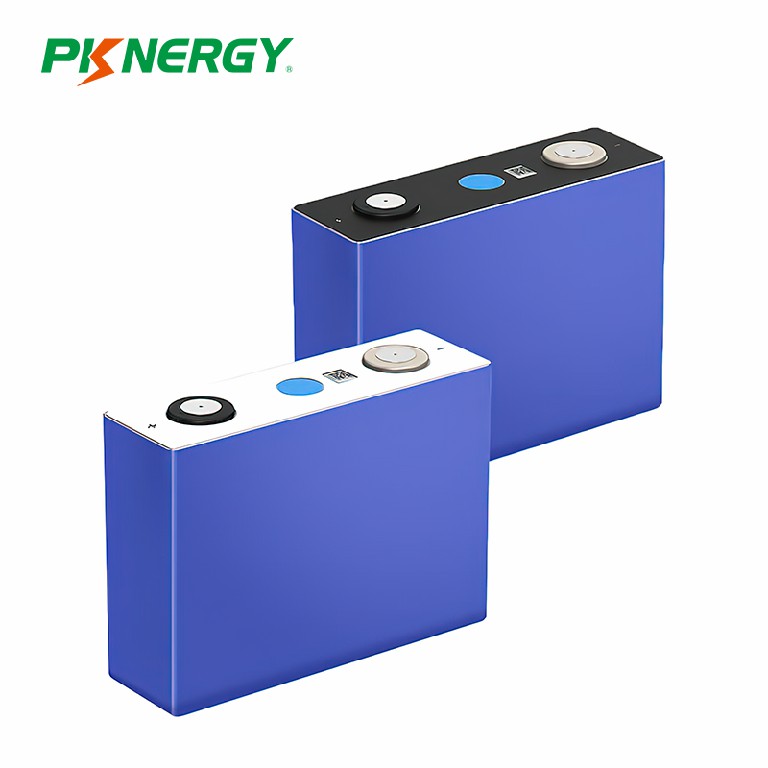

3.2V 40AH LIFEPO4 BATTERY CELL FOR ELECTRIC VEHICLE

Short Description:

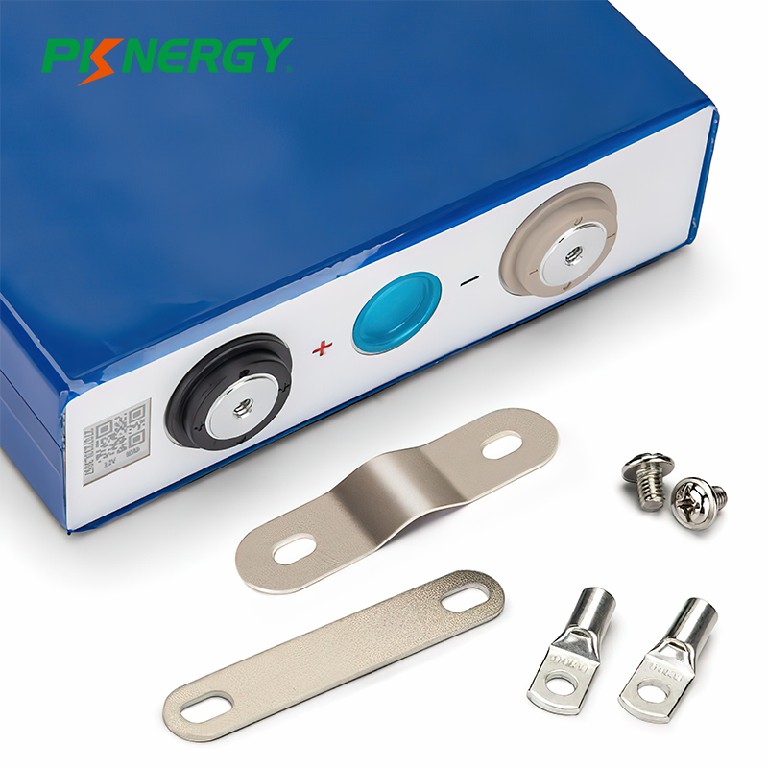

Extrema light weight, Extended cycle life,Low Self Discharge, Superior Cranking Power,Completely Sealed and Environmental lifepo4 battery, especially developed for Large-scale electric vehicles, Light electric vehicles, Electric ship,Golf cart, Power tools,solar equipment and so on. The price of this battery come with Bus bars and Bolts, one battery will come with one set bus bar and bolt (e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)


Product Detail

Product Tags

LiFePO4 battery cells such as lifepo4 battery cell 100ah offer an impressive energy density, providing substantial power in a compact and lightweight form factor. This makes them perfect for applications with space and weight limitations. Which is also eco-friendly and do not contain toxic materials like cobalt, often found in other lithium-ion batteries. They are also more easily recyclable.

PRODUCT SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS

VOLTAGE: 3.2V
NOMINAL CAPACITY: 40Ah
NOMINAL ENERGY: 128Wh
CYCLE LIFE: ≥4000 times

MECHANICAL SPECIFICATIONS

DIMENSION(LXWXH): 27*148*134mm
WEIGHT: 1.1Kg
CELL TYPE/CHEMISTRY: Cylindrical LiFePO4
TERMINALS: standard Screw terminals

CHARGE&DISCHARGE SPECIFICATIONS

CHARGE METHOD: CCCV
CHARGE VOLTAGE: 2.5-3.65V
MAX. CHARGE CURRENT: 40A
END OF DISCHARGE VOLTAGE: 2.5V
DISCHARGE CURRENT CONTINUOUS: 40A

TEMPERATURE SPECIFICATIONS

CHARGE TEMPERATURE: 0℃~45℃
DISCHARGE TEMPERATURE: -20℃~60℃
STORAGE TEMPERATURE: 15~+35℃

COMPLIANCE SPECIFICATIONS:

CERTIFICATION: RoHs, CE
SHIPPING METHOD: Expressage, by Sea, by Railway, by Air

COMPLIANCE SPECIFICATIONS:

THE BATTERY CAN BE IN SERIES IN 4 OR IN PARALLEL IN 4, BUT NOT AT THE SAME TIME.
