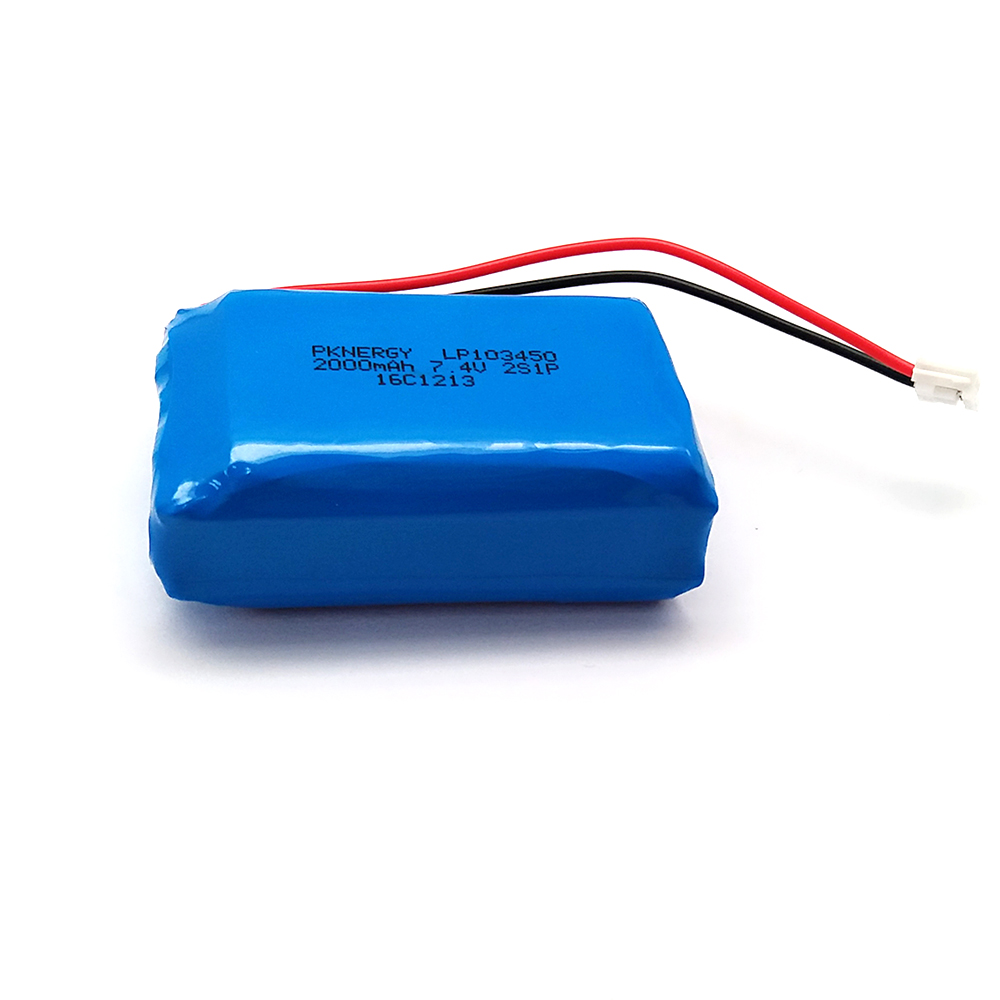

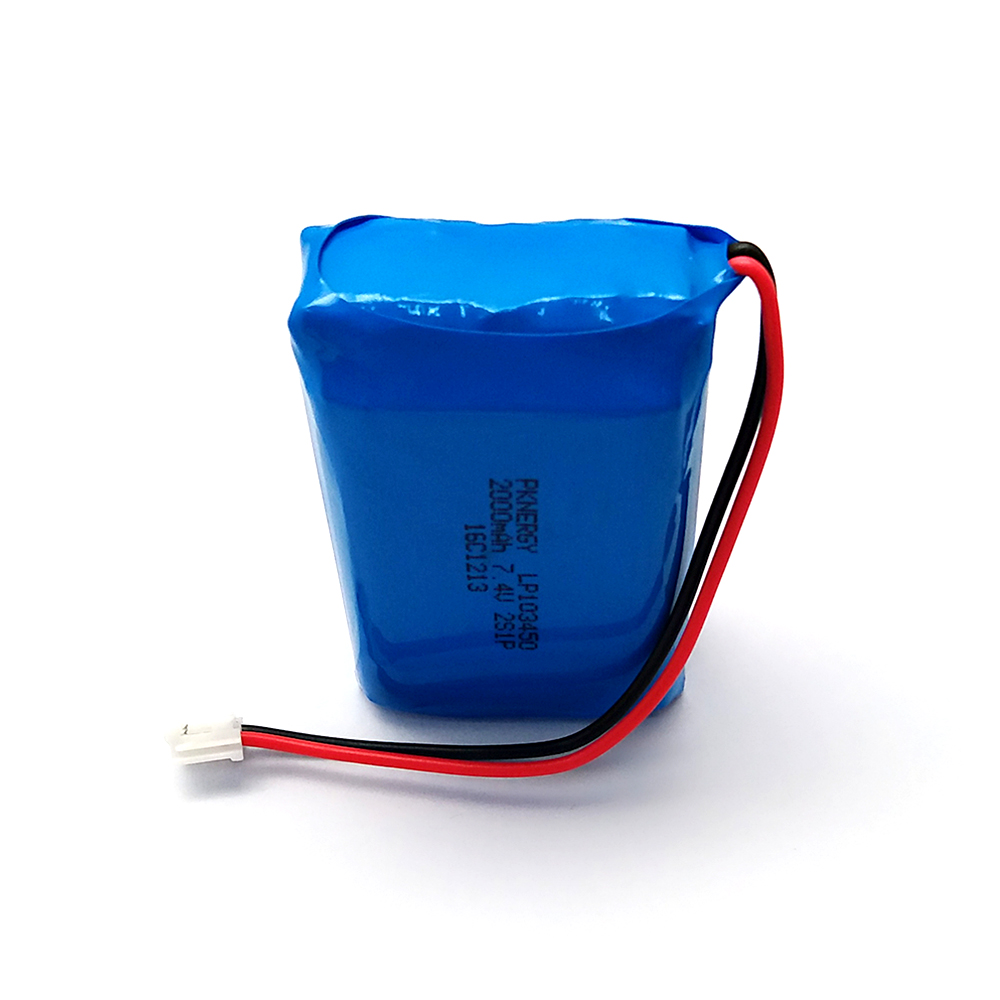

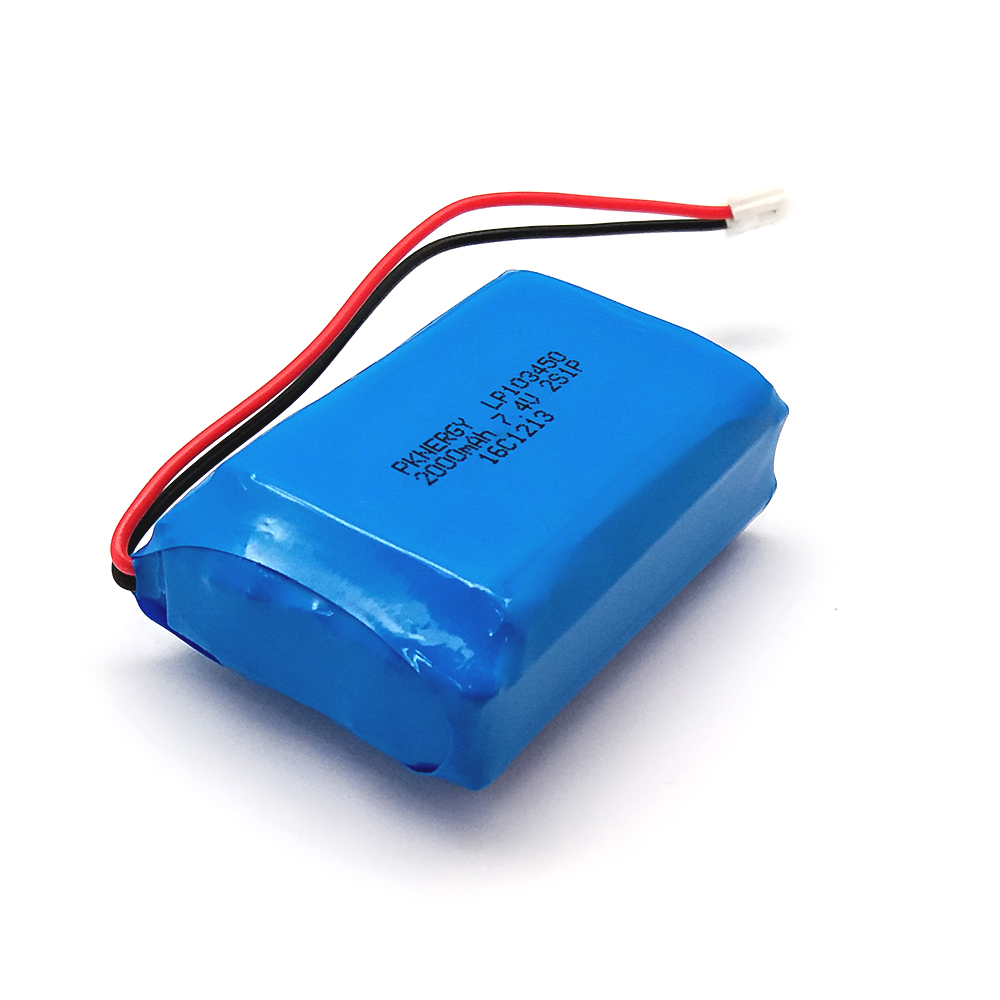

PKNERGY LP103450 2000mAh 7.4V Li-Polymer Battery Pack

Short Description:

Lithium-ion polymer (also known as ‘lipo’ or ‘lipoly’) batteries are thin, light, and powerful. The output ranges from 8.4V when completely discharged to 6.0V. This battery has a capacity of 2000mAh for a total of about 14.8Wh. If you need a larger battery, we also have a 2000mAh+ model.


Product Detail

Product Tags

Lithium-ion polymer (also known as ‘lipo’ or ‘lipoly’) batteries are thin, light, and powerful. The output ranges from 8.4V when completely discharged to 6.0V. This battery has a capacity of 2000mAh for a total of about 14.8Wh. If you need a larger battery, we also have a 2000mAh+ model.

Features

1.Intelligent Battery Pack Design
2.Environmental Friendly Chemistry,Pollution-free;non-polluting
3.High Energy Density,High Power Density
4.No fire, No explosion, No leakage
5.Wholly closed dust-free workshops,securing high quality
6.Excellent Cycle Life,chargeable up to 500 or 1000 times



Applications

1. Consumer Electronics: Smartphones, tablets, laptops, and wearables benefit from the lightweight and energy-dense nature of 7.4v Lipo Battery.
2. RC Hobbies: Remote-controlled cars, airplanes, helicopters, and drones rely on Li-Po batteries for their high energy output and low weight.
3. Portable Electronics: Power banks and portable chargers often use Li-Po batteries to provide on-the-go charging solutions.
4. Medical Devices: Compact and lightweight Li-Po batteries are commonly used in medical devices like portable oxygen concentrators and infusion pumps.
5. Electric Vehicles: Some electric bikes and scooters utilize Li-Po batteries for their power-to-weight ratio.



Specification

No.

Item

          Characteristics

Remarks

1

Nominal Capacity Minimum:1900mAh Typical:2000mAh Standard discharge(0.2C)after Standard charge

2

Nominal Voltage 3.7V

3

Charging Cut-off Voltage 4.2V

4

Discharge Cut-off Voltage 3.0V



5

 Standard Charge Constant Current 0.2C Constant Voltage 4.2V0.01 C cut-off Charge Time : Approx 6.5h

6

Maximum Constant Charging Current 1500mA

7

Standard Discharge Discharge at 0.2C to 3.0V

8

Maximum Continuous Discharging Current 1500mA

9

Operating Temperature Charge 10~45℃Discharge –20~60℃

10

Storage Temperature -20~45℃ for 1Month-10~35℃ for 6Months

11

Storage Voltage 3.7-3.85V



12

  Environmental request   RoHS If the materials of the product and packaging accord with RoHS standard,there will be aRoHS Id on the box.





13

  Dimension



Cell: 10x34x50(MM)

Battery Pack:Max 21.5×34.5×53(MM)





Appearance

No scratches, dirt, defect, leakage of electrolyte or gassing should be observed as a new product.

Standard Testing Environment

Temperature : 25±2℃

Relative humidity : 65±20%(unless specially requested)

Packing

Pallet/PE bag/Customized Package
1. All shipping goods are 100% inspected and packed very well.
2. The images shown are for your reference Only.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush, or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. Polarity matches all Adafruit LiPoly/LiIon chargers and boards, other brands may have reverse polarity and can destroy your battery. As with all Lithium-ion polymer batteries and with any power source – they should be used by experts who are comfortable working with power supplies.
